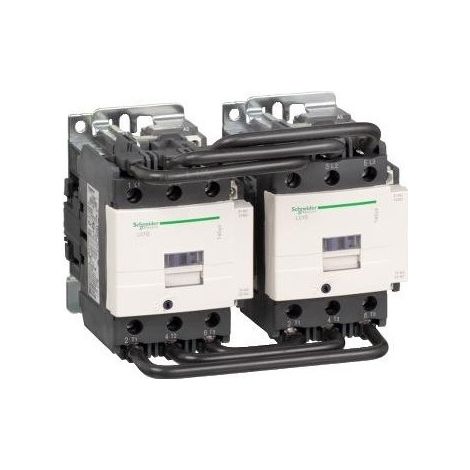

Schneider LC2D80P7 Reversing contactor Tesys LC2D 3p ac3 440v 80 a coil 230 v ac

Name: Schneider LC2D80P7 Reversing contactor Tesys LC2D 3p ac3 440v 80 a coil 230 v ac
Brand: SCHNEIDER ELECTRIC
SKU: LC2D80P7
Price: 786.35 GBP
Availability: InStock

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by AVB Negoce

Product information

Description

General description

The Schneider LC2D80P7 Reversing Contactor from the TeSys D range is designed for motor control and resistive load applications. This pre-assembled device features an inversion busbar and is suitable for various operational voltages and currents.

Technical specifications

Type: Reversing contactor

Abbreviated device name: LC2D

Rated operating voltage: <= 1000 V AC, 25...400 Hz for circuit power; <= 300 V DC for power circuit

Rated operational current: 80 A

Motor power (kW): 22 kW at 220...230 V AC 50/60 Hz

Motor power (kW): 37 kW at 380...400 V AC 50/60 Hz

Motor power (kW): 45 kW at 1000 V AC 50/60 Hz

Motor power (kW): 45 kW at 660...690 V AC 50/60 Hz

Motor power (kW): 55 kW at 500 V AC 50/60 Hz

Motor power (kW): 45 kW at 415...440 V AC 50/60 Hz

Motor power (hp): 20 hp at 200/208 V AC 50/60 Hz

Motor power (hp): 7.5 hp at 115 V AC 50/60 Hz

Motor power (hp): 15 hp at 230/240 V AC 50/60 Hz

Motor power (hp): 25 hp at 230/240 V AC 50/60 Hz

Motor power (hp): 60 hp at 460/480 V AC 50/60 Hz

Motor power (hp): 60 hp at 575/600 V AC 50/60 Hz

Control circuit voltage: 230 V AC 50/60 Hz

Auxiliary contact composition: 1C+1O

Features

Brand
SCHNEIDER ELECTRIC
Colour
White
Amperage
80 A
Nominal intensity
AC
Material
Metal
Number of terminals
3
Weight
3200 g
Electrical network
Single-phase
Voltage
230 V
Coil type
Classic
Contact type
Normally closed
ManoMano Reference
ME51133231
MMID
564362054250
Product code
LC2D80P7
EAN
3389110457858
