Product information

Description

General description

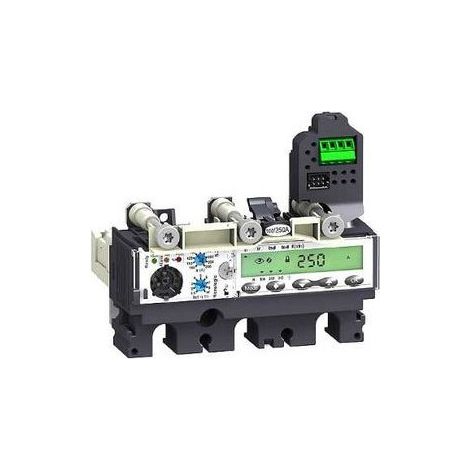

The Schneider LV429096 Micrologic 5.2 e 40A 3P3D release is designed for use with NSX100-250 circuit breakers, providing reliable protection and control for electrical distribution systems.

Technical specifications

  • Product range: NSX100...250
  • Circuit breaker application: Distribution
  • Pole description: 3P
  • Protected poles: 3t
  • Mains type: AC
  • Mains frequency: 50/60 Hz
  • Trip unit name: Micrologic 5.2 E
  • Trip unit technology: Electronic
  • Trip unit protection functions: LSI
  • Trip unit rating: 40 A (40 °C)
  • Type of protection: Instantaneous short-circuit protection / Overload protection (long delay) / Short delay protection

    • Features

    • Brand
      SCHNEIDER
    • Voltage
      48 V
    • Pcs per pack
      1
    • Trigger function
      Isolation
    • IP rating
      IP20
    • Amperage
      40 A
    • Nominal intensity
      AC
    • Material
      Plastic
    • Actuation mode
      Automatic
    • Number of terminals
      3
    • Weight
      200 g
    • Type of electrical control
      230 V AC
    • Trigger type
      Electronic
    • ManoMano Reference
      ME5744651
    • MMID
      832507836950
    • Product code
      LV429096
    • EAN
      3606480016998
