SDS PLUS Hole Core Drill Bit Cutter Set Hole Saw Kit Concrete Drill Bit Can Drill Hole Drill SDS Adapter For Concrete Cement Brick Wall 30/40/68/80/100mm

~~£123.99~~

£1Offered

To be applied on the payment page

Offer valid today only.

Sold by DENCRESTUK

Product information

Description

General description

Let this SDS PLUS Hole Core Drill Bit Cutter Set make your drilling work easier! This complete hole saw kit is designed for high-intensity work, ensuring it will not break or twist easily. With various sizes available, it allows you to handle different drilling tasks efficiently, making it an ideal gift for DIY enthusiasts.

Technical specifications

Material: 45 # Carbon Steel, 40 Cr, YG8 Alloy

Color: Black, Grey

Diameter: 30/40/68/80/100mm

Cutting Diameter: 30-100mm / 1.18-3.94in

Chip Flute Length: 50mm / 1.97in

Useful Length: 50mm / 1.97in

Total Length: 370mm / 14.57in

Cutting Depth: 330-350mm / 12.99-13.78in

Blade Size: 6.5mm / 0.26in

Number of Teeth: 4/5/8/10/12

Pipe Wall Thickness: 3.4-3.5mm / 0.13-0.14in

Toolbox Size: 33*26.5*9.5cm / 12.99*10.43*3.74in

Net Weight: 5.2kg / 11.46lbs

Gross Weight: 5.8kg / 12.79lbs

Installation

Install the center drill into the corresponding extension hole of the groove.

Insert the center drill into the bottom.

Put the fixing screw into the extension rod.

Tighten the set screw with a wrench.

Put the tapper into the extension rod.

Tighten the tapper and extension rod.

Usage

This product is compatible with electric hammers.

It can drill through brick, adobe, foam, and concrete walls.

When drilling, keep the drill perpendicular to the workpiece.

Use a small feed force at the beginning of drilling and a medium feed force after positioning.

When drilling continuously, use cutting fluid to cool the cutting edge.

If tiles are present on one side of the wall, use a tile opener to create a hole before using this product.

Other information

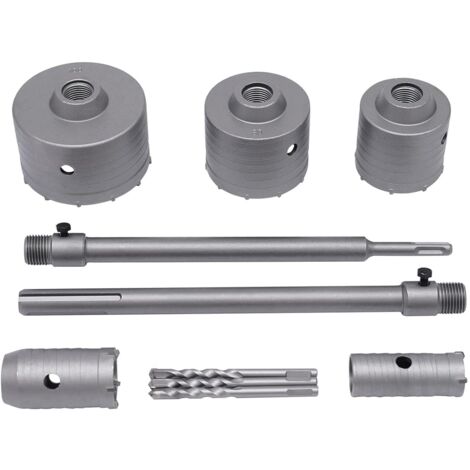

Package includes: 1* Drill Bit Ø 30 mm, 1* Drill Bit Ø 40 mm, 1* Drill Bit Ø 68 mm, 1* Drill Bit Ø 80 mm, 1* Drill Bit Ø 100 mm, 2* Center Drill Ø 8 x 110, 1* SDS-Plus Shank 300 mm, 1* SDS-Max Shank 300 mm, 1* Plastic Toolbox.

Please wear a full set of protective equipment when working with tools.

This product does not apply to drilling on stainless steel, steel, ceramic tile, and stone.

Check the integrity of the borehole before use.

Note that screws may loosen due to excessive vibration during drilling, which is normal.

When not in use, keep it out of the reach of children.

Features

Brand
CNCEST
Pcs per pack
9
Warranty
1 year(s)
Suitable for
Mineral / stone
Material
Steel
Weight
5200 g
ManoMano Reference
ME94504696
MMID
375152983197
Product code
20211012371
EAN
756383487616
