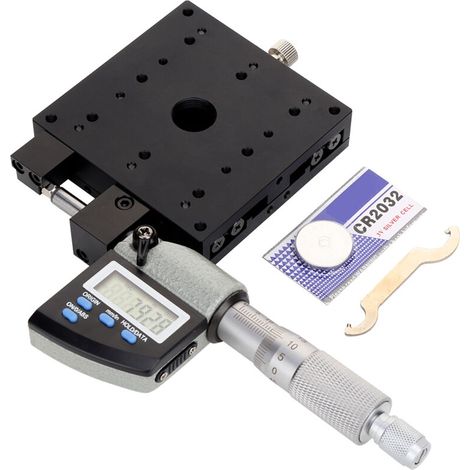

SEMX80-AS Micrometric Platform with Digital Display, 80x80mm Linear Translation Stage, 0.001mm

Function:

1. Made of black oxide aluminum alloy, wear-resistant, corrosion-resistant, waterproof, and oxidation-resistant, durable.
2. Digital display micrometer adjustment, convenient reading and control, displacement accuracy up to 0.001 mm.
3. The sliding guide rail adopts a crossed roller type and has a strong load capacity.
4. Widely used in production machinery, inspection equipment, precision measurements in optical laboratories, fine adjustment of displacement, positioning, and movement of mechanical equipment.
5. The platform size is 80 x 80 mm with a load capacity of 98 N (9.5 kgf).

Specifications:

Item Type: Micrometer Platform
Table Size: 80 x 80 mm / 3.15 x 3.15 inches
Thickness: 20 mm / 0.79 inches
Load Capacity: 98 N (9.5 kgf)
X-Shaft Travel: ±12.5 mm (total travel distance) 25.0 mm)
Adjustment Accuracy: 0.001 mm
Material: Aluminum alloy (blackened oxidation)
Movement Distance Adjustment: Micrometer differential head, large circle for coarse adjustment, small circle for fine adjustment
Sliding Track: Linear guide
Rail Type: Cross roller type
Button battery type: CR2032 3V 210mAh

Package List:

1 x Micrometer platform
