Set of 11 crimping tools – Ratchet crimping tool for heat shrink tubing, insulated nylon, uninsulated nylon, ferrule wire ends, open barrel terminals, solar connectors

~~£108.45~~

Of which environmental contribution £0.01 including VAT.

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by LinzGain Sarl

Product information

Description

Crimping tool with 5 interchangeable terminals for various crimping ranges. Professional crimping tool with a self-adjusting ratchet mechanism for easy use. Applicable to most uninsulated crimp terminals and connectors. Multifunctional wire stripper with an improved design and more comfortable handle for wires from 24 to 10 AWG (0.2 to 6.0 mm²). Thanks to the optimal grip position, the lightweight and compact structure and handle design ensure a perfect crimping effect. Specifications: Model: JX-D5301S. Material: High-carbon steel + alloy. Color: Low + black.

Suitable terminals and crimping wire range:

JX1601-01: Color-coded nests + insulated terminals 24-14AWG (0.25-2.5mm²).

JX1601-06: Cord end terminals 24-10AWG (0.25-6.0mm²).

JX1601-08: Open barrel connector, uninsulated, 26-16 AWG (0.14-1.5 mm²)

JX1601-10: Open barrel connector, uninsulated, 28-18 AWG (0.1-1.0 mm²)

JX1601-2546: Solar connector terminals, MC4, 14-10 AWG (2.5-6.0 mm²)

Self-stripping tool range: 24-10 AWG (0.2-6.0 mm²).

Crimping tool size: approx. 190 x 80 x 20 mm.

Crimping tool weight: approx. 348.5 g.

Self-stripping tool size: approx. 210 x 108 x 28 mm.

Weight of the automatic wire stripper: approximately 316g.

Package dimensions: approximately 23.5 x 18.5 x 4.5 cm.

Package weight: approximately 1010g.

Note: Please note the direction of the anastomosis of the dies and the terminal during operation, otherwise the dies will open.

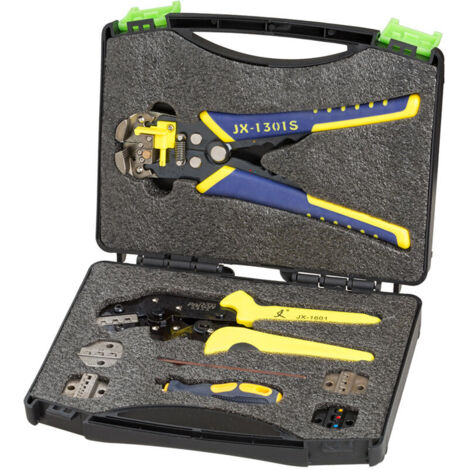

Contents:

1 JX-1601 crimping tool.

1 JX-1301S automatic wire stripper.

1 S2 screwdriver.

4 replacement dies.

4 screws.

1 toolbox

Features

Brand
SNQ
Power source
Manual
Shape
Rectangular
Height
2.8 cm
Width
10.8 cm
Length
21 cm
Material
Carbon
Weight
316 g
Pcs per pack
1
Crimping tool application
Cross-linked Polyethylene
ManoMano Reference
ME92565214
MMID
693689874845
Product code
FD-19914
EAN
6289547556131
