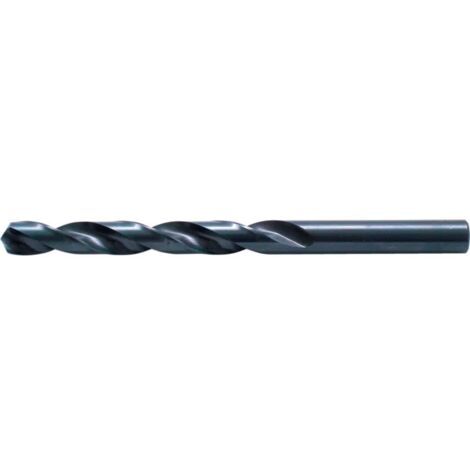

Sherwood: Set of 25 HSS Drills 1-13.00MM X 0.5MM

Industrial quality general purpose 25 piece jobber drill set suitable for a wide range of steels & supplied in indexing metal cases.

Features & Benefits
High speed steel ground flute drills for general purpose use
Black oxide blue finish coating
Point angle: 118
Helix angle: normal
Web thickness: standard
Relief angle: 10 to 20
Tolerance of diameter: h8
Tolerance of shank: f11
Manufactured to BS328: Part 1, DIN 338N & ANSI B94 -11M
Convenient 25 piece metric set ranging from 1 to 13.00mm x 0.5mm to cover board range of uses


Typical Applications
Steels
Cast steel
Grey cast iron
Malleable cast iron
Nickel brass
Aluminium alloy
Graphite

Notes
Metric sized set contains (mm): 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0, 7.5, 8.0, 8.5, 9.0, 9.5, 10.0, 10.5, 11.0, 11.5, 12.0, 12.5 and 13.0
Indexing metal case
MPN: SHR0258500K
EAN: 5036140002425

Set of 25 HSS Drills 1-13.00MM X 0.5MM Attributes:

Case Type:	Metal
Cutting Direction:	Right Hand
Drill Length Type:	Standard Length
Drill Size Included:	1mm to 13mm x 0.5mm
Finish/Coating:	Black Oxide
Flute Construction:	Ground Flute
Material:	High Speed Steel
Maximum Drill Size:	13mm
Minimum Drill Size:	1mm
Number of Pieces:	25
Size Increment:	0.5mm
Standards Met:	BS 328 DIN 338N ANSI B94-11M
System of Measurement:	Metric
