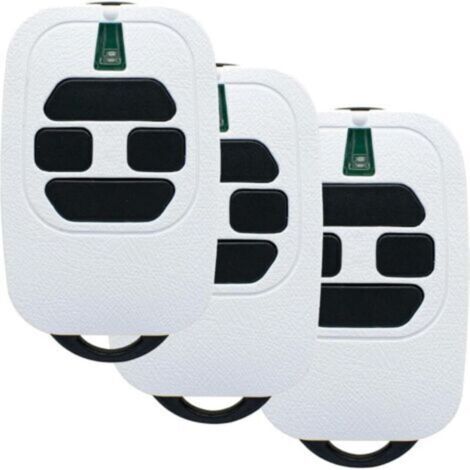

Set of 3 portable garage door transmitters, 433.92 MHz, compatible with DEA GTI2 and DEA GTI4

General Description

This set of 3 portable garage door transmitters operates at a frequency of 433.92 MHz and is compatible with several DEA remote control models, including the DEA GTI2, GTI4, as well as other models such as DEA MIO and DEA GENIE. These transmitters use a rolling code and a fixed code to ensure secure communication with your garage door system.

Technical Specifications

• Frequency: 433.92 MHz
• Code Type: HCS Rolling Code and Fixed Code
• Compatibility: DEA GTI2, GTI4, DEA MIO TR2, TR4, DEA GENIE 273, GOLD 288, GOLD 289, etc.

Compatibility and Accessories

• Compatible with the following models:
• DEA GT2, GT4
• DEA MIO TD2, TD4
• DEA punto-2, punto-4
• DEA GT2M, GT4M

Installation

• To program the transmitter, press a button to emit a radio signal and Turn on the LED.
• The LEDs indicate the type of code being used: red LED for HCS rolling code, green LED for factory setting.
• To change the transmission code, press and hold the T1 and T2 keys.

Operation

• When the LEDs light up, wait for them to blink to indicate the set code type:
• 1 blink per second = HCS Rolling Code
• 2 blinks per second = HT12 DIP SWITCH
• 3 blinks per second = DART
• Press and hold the T1 key and use the T2 key to change the blink pattern.
• To finalize the new code, press and hold the T2 key until the LEDs turn off.
