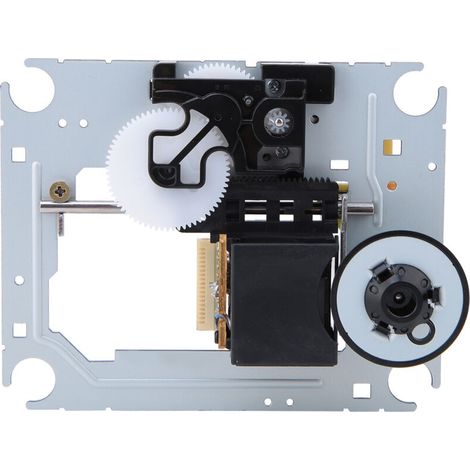

SF P101N Laser Tip 16-Pin Low Speed Single Channel CD Player Complete Mechanism

1. This mechanism is applicable to many other brands of CD and HiFi players, as many manufacturers use SF-P101N lasers.
2. However, please note that there are two versions of the SF-P101N laser. One has 16 pins on the laser ribbon connector, and the other has 15 pins.
3. The 16-pin type is provided here as it is the most common. The 6-pin and 15-pin versions are not interchangeable.
4. The SF-P101N laser fitted to this mechanism can be used in many different brands of CD and HiFi players.
5. The laser model is printed on the laser housing. Therefore, if your faulty laser is printed with SF-P101N, then this is your mechanism. Simply count the number of pins on the edge connector to verify that there are 16.

Specification:

Features:
This mechanism is applicable to many other brands of CD and HiFi players, as many manufacturers use SF-P101N lasers.
However, please note that there are two versions of the SF-P101N laser. One has 16 pins on the laser ribbon connector, and the other has 15 pins.
The 16-pin type is supplied here as it is the most common type. The 6-pin and 15-pin versions are not interchangeable.
The SF-P101N laser fitted to this mechanism can be used in many different brands of CD and HiFi players.
The laser model is printed on the laser housing. So, if your faulty laser is printed with SF-P101N, then that is your mechanism. Simply count the number of pins on the on-board connector to verify that there are 16.
If your CD or HiFi player came with an SF-P101N laser, you can replace the entire mechanism. This will provide a very effective repair because all the moving parts of the CD reading mechanism will be replaced.
Specification:
Type: Laser head.
Band range: Visible light
Operating mode: Continuous
Instruction method: Optical pump
Working substance: Semiconductor
Light path: Inner light path
Output shape: NPN triode type
Transmission signal: Three-state gate type
Speed: Low speed
Channel: Single channel
Package list:
1 x CD player replacement mechanism
