Product information

Description

General description

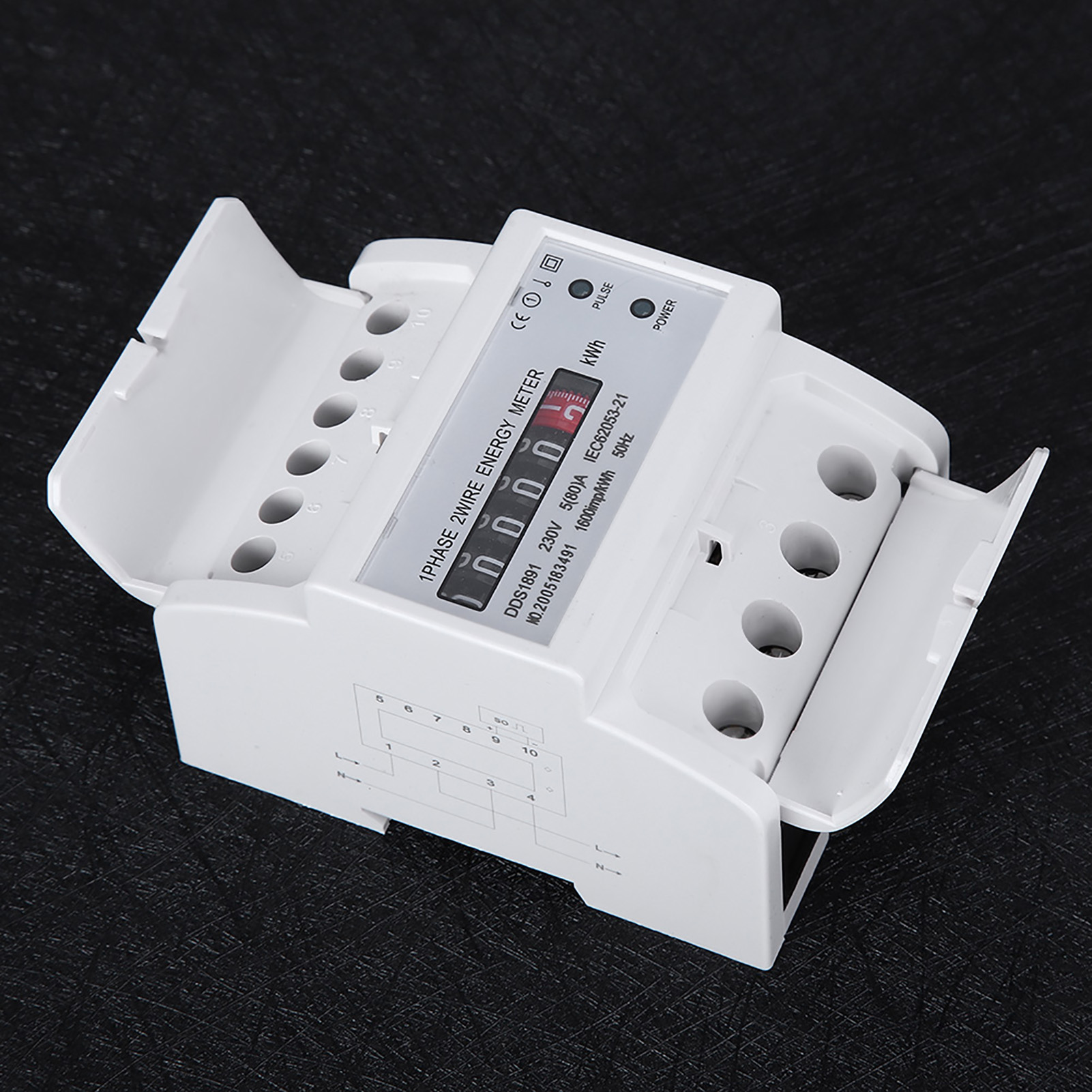

DDS1891 DIN Rail Single Phase Electronic Active Energy Meter is a high-precision device designed for measuring active energy consumption in single-phase AC networks. It features excellent long-term reliability, a compact size, lightweight design, and an aesthetically pleasing appearance, making it easy to install and use. The meter utilizes advanced microelectronics technology and large-scale integrated circuits to ensure accurate measurements.

Technical specifications

Condition: 100% Brand New

Item Type: Rail Energy Meter

Current: 5(80)A

Pulse Constant: 1600imp/Kwh

Frequency: 50Hz

Size: As shown in the pictures

Installation

Standard 35mm DIN rail installation, conforming to DIN EN50022.

Four widths (module 12.5mm), in accordance with DIN43880.

Easy contact with various AMR systems, in accordance with IEC 62053-21 and DIN43864 standards.

Usage

Directly measures the active energy consumption of the load in a single-phase AC network.

Displays total energy consumption through a stepper motor type pulse register.

Two types of wiring can be selected: standard S-type wiring and optional U-type wiring.

Unidirectional measurement of single-phase two-wire active energy consumption.

Other information

Features

Brand
YMYNY
Amperage
5 A
Control function
Yes
Frequency
50 Hertz
Material
Rubber
Type of electrical installation
DIN rail
Number of phase(s)
Single-phase
Voltage
26 V
Meter type
Electricity
ManoMano Reference
ME94091326
MMID
335255857504
Product code
XHWD-M-XXW-9443
EAN
6095973133514
