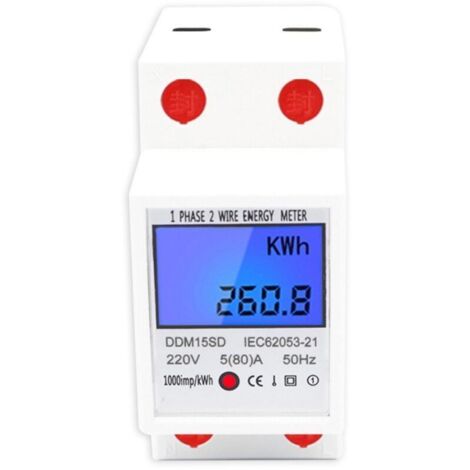

Single-Phase Digital Energy Meter 5-80A 220V 50Hz kWh Meter LCD Backlit Display Single-Phase Multifunction kWh Electronic Meter DDM15SD
You may also like
Compare with similar items
Product information
Description
General Description The DDM15SD energy meter is an essential device for accurately monitoring electricity consumption. Its backlit LCD digital display allows for easy viewing of consumption, voltage, current, and power. Designed for simple DIN rail mounting, it is ideal for home or professional use. Technical Specifications Voltage: AC 220V / 50Hz Current: 5A - 80A Maximum Power: 17000W Pulse Output: 1000 imp/kWh Pole Width: 17.5 mm Accuracy: First Class Ambient Temperature: -20℃ to +50℃ Dimensions: 7.8 x 3.7 x 6.6 cm Weight: 200 g Compatibility and Accessories 35 mm DIN rail mounting Compatible with Up-Out and Down-In / Up-In and Down-Out wiring methods Installation The energy meter is designed for easy DIN rail mounting. Ensure you follow the proper wiring instructions for correct installation. Use: Use this meter to accurately measure and monitor your energy consumption. It is ideal for both home and business applications, enabling efficient tracking of electricity usage. Other information: Please note that this energy meter does not have a reset function.
Features
- BrandSNQ
- Amperage5 A
- Accuracy classClass 1.0
- Control functionNo
- Frequency50 Hertz
