Single-phase DIN rail energy meter 5-80A 220V 50Hz electronic kWh meter with backlit LCD digital display DDM15SD, white - white (Pack of 2)
You may also like
Compare with similar items
Product information
Description
Features:

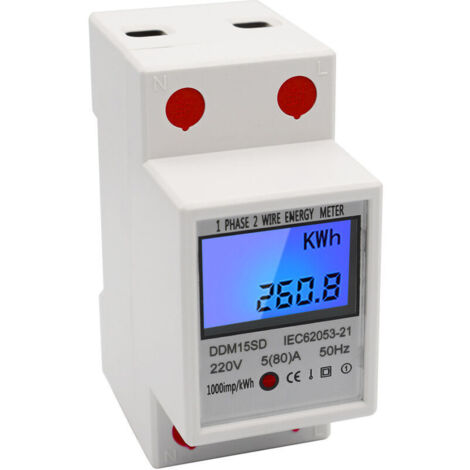

Energy meter with backlit LCD digital display, shows electricity consumption, voltage, current, and power in turn.
Voltage AC220V/50Hz, current 5A-80A, power 17000W, pulse output 1000imp/kWh, and with pulse output indicator.
35mm DIN rail mounting; 17.5mm pole width; Supports Up-Out and Down-In / Up-In and Down-Out wiring methods, easy to install.
Adopts microelectronics and digital processing technology to measure electrical energy accurately and reliably.
Large-scale integrated circuits and precision SMT technology, with good resistance to electromagnetic interference and stable performance.
Features:

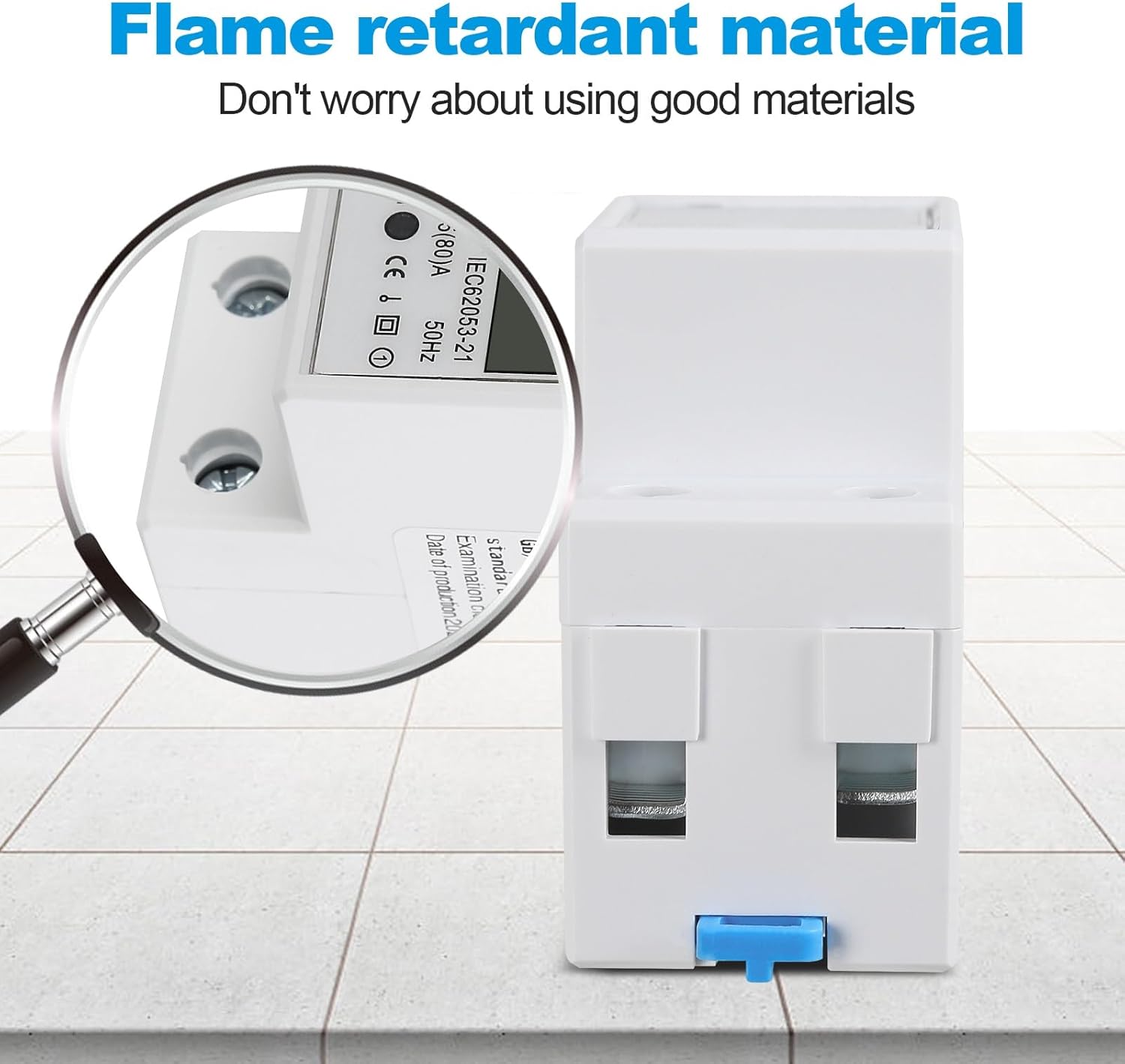

Material: plastic
Model: DDM15SD
Accuracy: First class
Reference voltage: 220V / 50Hz
Reference current: 5-80A
Display: Backlit LCD digital display

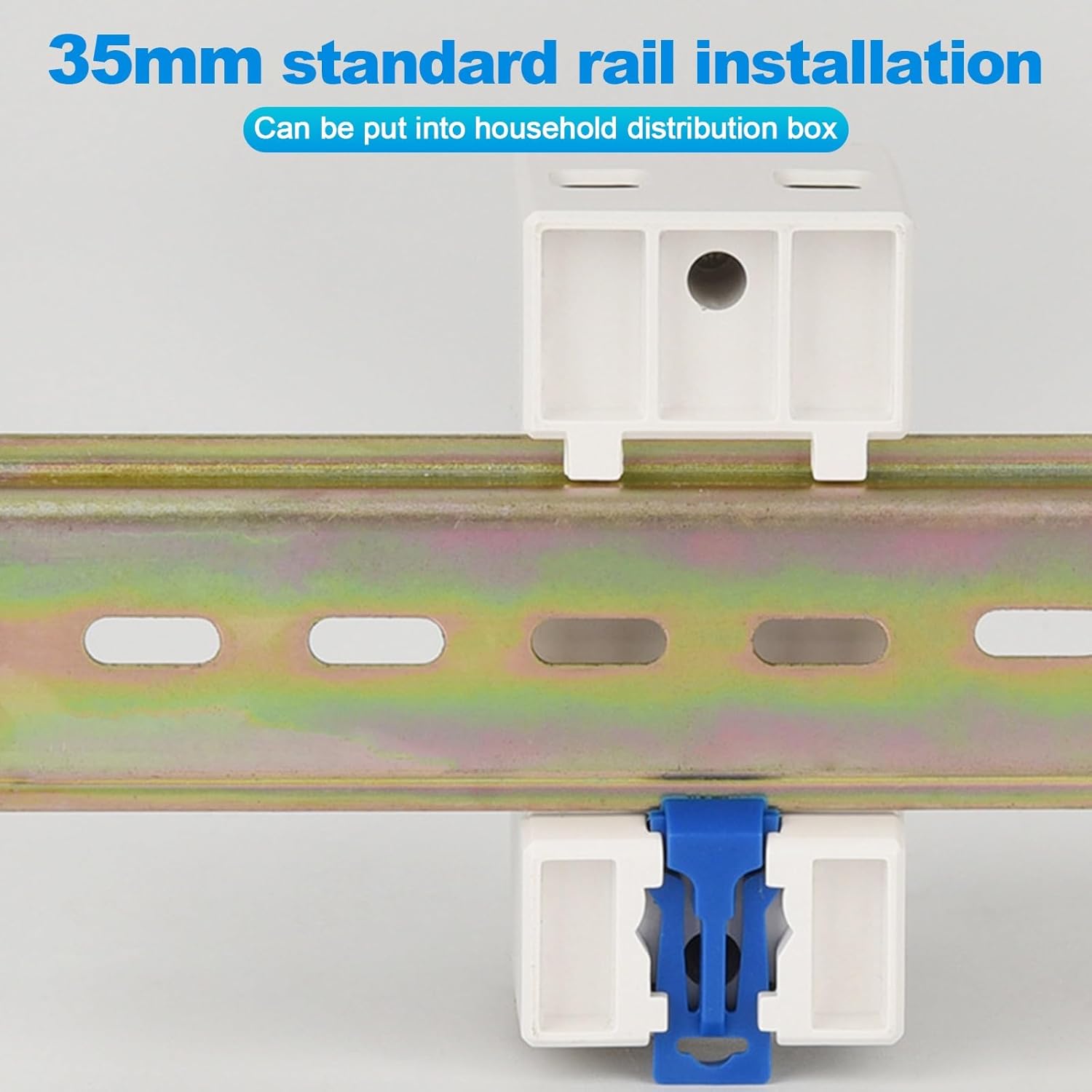

Installation: 35mm DIN rail
Pole width: 17.5mm
Wiring method: Up and down / Up and down
Power: 17000W
Ambient temperature: -20℃ ~ +50℃
Item size: approx. 7.8 * 3.7 * 6.6cm / 3.1 * 1.5 * 2.6in
Item weight: 200g / 7.1oz
Package size: 8 * 7 * 4cm / 3.1 * 2.8 * 1.6in
Package weight: 300g
Note:
This energy meter does not have a reset function.
Package List:
2 * Energy Meters
Features
- BrandTEHTUY
- Warranty1 year(s)
- Accuracy classClass 1.0
- Availability of spare parts1 year(s)
- Control functionYes
- Frequency50 Hertz
- Height6.6 cm
- Width1 cm
- MaterialPlastic
- Type of electrical installationDIN rail
- Number of modules1
- Number of entry(s)1
- Number of phase(s)Single-phase
- Number of outlets1
- Weight200 g
- Power1 W
- Voltage220 V
- Meter typeElectricity
- ManoMano ReferenceME98975026
- MMID740203568564
- Product codeZJL-mano-05469
- EAN6282768128217
