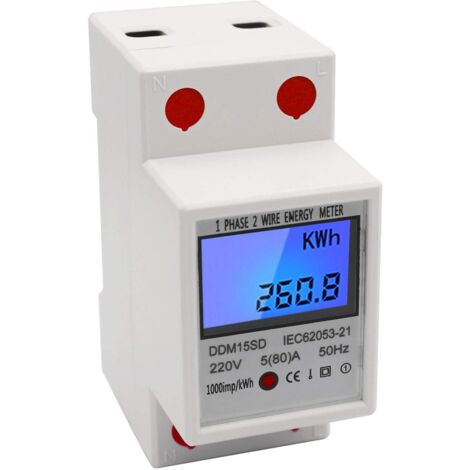

Single Phase DIN-Rail Energy Meter 5-80A 220V 50Hz Electronic KWh Meter with LCD Backlight Digital Display DDM15SD

£23.58

Buying for your business?

Negotiated prices excl. VAT up to -20%

Sold by Tinor-GB

You may also like

Compare with similar items

Product information

Description

General description

Energy meter with LCD backlight digital display, capable of displaying electricity consumption, voltage, current, and power in sequence. It is designed for accurate and reliable measurement of electric energy using microelectronics and digital processing technology.

Technical specifications

  • Model: DDM15SD
  • Material: Plastic
  • Reference Voltage: 220V / 50Hz
  • Reference Current: 5-80A
  • Power: 17000W
  • Display: Backlight LCD digital display
  • Installation: 35mm DIN rail
  • Pole Width: 17.5mm
  • Ambient Temperature: -20℃~+50℃
  • Item Size: Approx. 7.8 * 3.7 * 6.6cm / 3.1 * 1.5 * 2.6in
  • Item Weight: 200g / 7.1oz
  • Package Size: 8 * 7 * 4cm / 3.1 * 2.8 * 1.6in
  • Package Weight: 300g
  • Installation

  • 35mm DIN rail mounting
  • Supports Up-Out and Down-In / Up-In and Down-Out wiring methods for easy installation
  • Usage

  • Displays electricity consumption, voltage, current, and power alternately
  • Other information

  • This energy meter does not have a reset function
  • Package List: 1 * Energy Meter
  • Features

    • Brand
      TINOR
    • Control function
      Yes
    • Frequency
      50 Hertz
    • Material
      Plastic
    • Type of electrical installation
      DIN rail
    • Number of phase(s)
      Single-phase
    • Weight
      200 g
    • Voltage
      220 V
    • Meter type
      Electricity
    • ManoMano Reference
      ME94072242
    • MMID
      145212127873
    • Product code
      RN05379
    • EAN
      9458510910110
