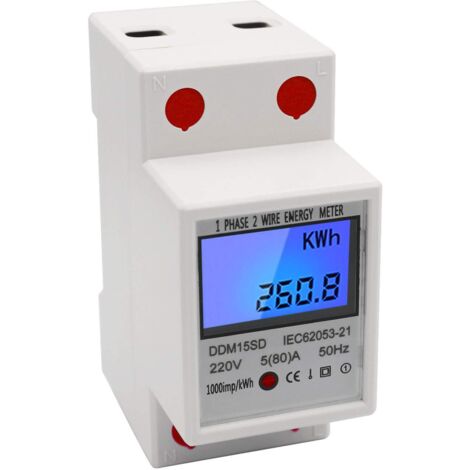

Single Phase DIN-Rail Energy Meter 5-80A 220V 50Hz Electronic KWh Meter with LCD Backlight Digital Display DDM15SD

Energy meter with LCD backlight digital display, alternately displays electricity consumption, voltage, current and power.

Voltage AC220V/50Hz, current 5A-80A, power 17000W, pulse output 1000imp/kwh and with pulse output indicator.

35mm DIN rail mounting; 17.5mm pole width; Supports Up-Out and Down-In / Up-In and Down-Out wiring method, easy to install.

Adopt microelectronics and digital processing technology to measure electric energy accurately and reliably.

Large-scale integrated circuits and precision SMT technology, with good electromagnetic interference resistance and stable performance.

Features:

Energy meter with LCD backlight digital display, alternately displays electricity consumption, voltage, current and power.

Voltage AC220V/50Hz, current 5A-80A, power 17000W, pulse output 1000imp/kwh and with pulse output indicator.

35mm DIN rail mounting; 17.5mm pole width; Supports Up-Out and Down-In / Up-In and Down-Out wiring method, easy to install.

Adopt microelectronics and digital processing technology to measure electric energy accurately and reliably.

Large-scale integrated circuits and precision SMT technology, with good electromagnetic interference resistance and stable performance.

Specifications:

Material: Plastic

Model: DDM15SD

Accuracy: First-class

Reference Voltage: 220V / 50Hz

Reference Current: 5-80A

Display: Backlight LCD digital display

Installation: 35mm DIN rail

Pole Width: 17.5mm

Method Wiring: Up and Down / Up and Down

Power: 17000W

Ambient Temperature: -20℃~+50℃

Item Size: Approx. 7.8 * 3.7 * 6.6cm / 3.1 * 1.5 * 2.6in

Item Weight: 200g / 7.1oz

Package Size: 8 * 7 * 4cm / 3.1 * 2.8 * 1.6in

Package Weight: 300g

Note:

This energy meter does not have the reset function.

Package List:

1 * Energy Meter
