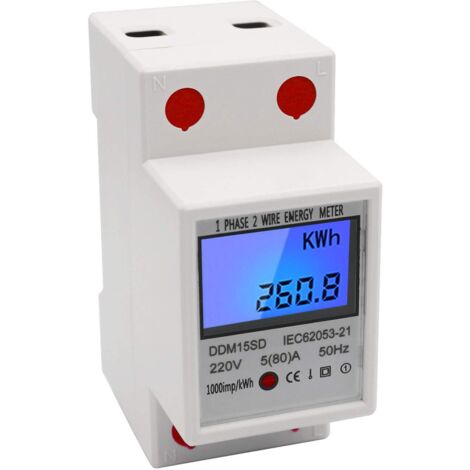

Single Phase DIN-Rail Energy Meter 5-80A 220V 50Hz Electronic KWh Meter with LCD Backlight Digital Display DDM15SD NPTERBL

£19.98
Sold by Tinor-GB

You may also like

Compare with similar items

Product information

Description

General description

Energy meter with LCD backlight digital display, capable of displaying electricity consumption, voltage, current, and power in sequence. It is designed for accurate and reliable measurement of electric energy using microelectronics and digital processing technology.

Technical specifications

  • Model: DDM15SD
  • Reference Voltage: 220V / 50Hz
  • Current Range: 5A-80A
  • Power: 17000W
  • Pulse Output: 1000imp/kWh
  • Installation: 35mm DIN rail
  • Pole Width: 17.5mm
  • Ambient Temperature: -20℃ to +50℃
  • Item Size: Approx. 7.8 * 3.7 * 6.6cm / 3.1 * 1.5 * 2.6in
  • Item Weight: 200g / 7.1oz
  • Package Size: 8 * 7 * 4cm / 3.1 * 2.8 * 1.6in
  • Package Weight: 300g
  • Installation

  • Supports Up-Out and Down-In / Up-In and Down-Out wiring methods for easy installation.
  • Usage

  • Displays electricity consumption, voltage, current, and power alternately on the LCD backlight display.
  • Other information

  • This energy meter does not have a reset function.
  • Package List: 1 * Energy Meter
  • Features

    • Brand
      TINOR
    • Weight
      200 g
    • Voltage
      220 V
    • Amperage
      80 A
    • Frequency
      50 Hertz
