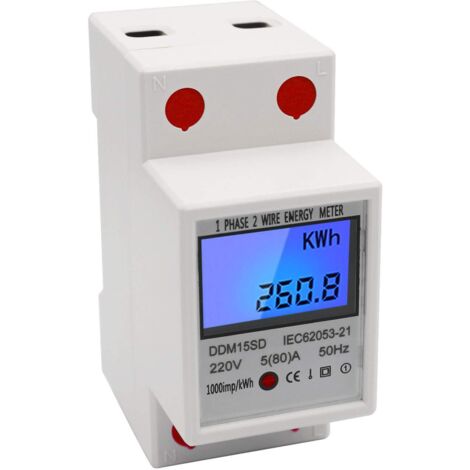

Single-phase DIN-rail energy meter 5-80A 220V 50Hz Electronic KWh meter with LCD backlit digital display DDM15SD
Buying for your business?
Negotiated prices excl. VAT up to -20%
You may also like
Digital energy meter socket, power consumption socket, energy monitoring for large appliances
Wattmeter 230 V/16 A，Wattmeter socket energy meter, energy consumption meter Power Consumption Controller with LCD display screen, maximum power 3680W（1pcs）
Energy Meter, 5-80 A, 230 V, 50 Hz, LCD, Single Phase Energy Meter, Wattmeter, DIN Rail Mount, DDS015
Compteur d'énergie Wattmètre Prise,Prise Compteur d'Énergie électrique avec 7 Mode, Compteur d'énergie avec l'écran d'affichage à cristaux liquides pour Économie d'Energie, 3680W
Boîtier d'économie d'énergie, dispositif d'économie de facteur de puissance, économiseur d'appareils ménagers, adaptateur 90V-250V pour utilisation au bureau et en usine
Energy Meters Wattmeter Socket Electricity Consumption, Socket Regulator Kwh Meter Maximum Power 3680W 16A for Energy Saving
Compare with similar items
Product information
Description
Energy meter with backlit LCD digital display, alternately displays electricity consumption, voltage, current and power.
Voltage AC220V/50Hz, current 5A-80A, power 17000W, pulse output 1000imp/kwh and with pulse output indicator.
35mm DIN rail mounting; pole width 17.5mm; Supports Up-Out and Down-In / Up-In and Down-Out wiring method, easy to install.
It adopts microelectronics and digital processing technology to measure electrical energy accurately and reliably.
Large-scale integrated circuits and precision SMT technology, with good resistance to electromagnetic interference and stable performance.
Features:
Energy meter with backlit LCD digital display, alternately displays electricity consumption, voltage, current and power.
Voltage AC220V/50Hz, current 5A-80A, power 17000W, pulse output 1000imp/kWh and with pulse output indicator.
35mm DIN rail mounting; pole width 17.5mm; Supports Up-Out and Down-In / Up-In and Down-Out wiring method, easy to install.
It adopts microelectronics and digital processing technology to measure electric energy accurately and reliably.
Large-scale integrated circuits and precision SMT technology, with good resistance to electromagnetic interference and stable performance.
Specifications:
Material: Plastic
Model: DDM15SD
Accuracy: First class
Reference voltage: 220V / 50Hz
Reference current: 5-80A
Display: Backlit LCD digital display
Installation: 35mm DIN rail
Pole width: 17.5mm
Wiring method: Up and Down Down / Up and Down
Power: 17000W
Ambient Temperature: -20℃~+50℃
Item Size: Approx. 7.8 * 3.7 * 6.6cm / 3.1 * 1.5 * 2.6in
Item Weight: 200g / 7.1oz
Package Size: 8 * 7 * 4cm / 3.1 * 2.8 * 1.6in
Package Weight: 300g
Note:
This energy meter does not have the reset function.
Package List:
1 * Energy Meter
Features
- BrandBEIJIYI
- Amperage80 A
- Frequency50 Hertz
- Width2 cm
- MaterialPlastic
- Type of electrical installationDIN rail
- Number of phase(s)Single-phase
- Weight200 g
- Voltage220 V
- Meter typeElectricity
- ManoMano ReferenceME95592705
- MMID529194217266
- Product codeFRYU-1630
- EAN9324622229948
