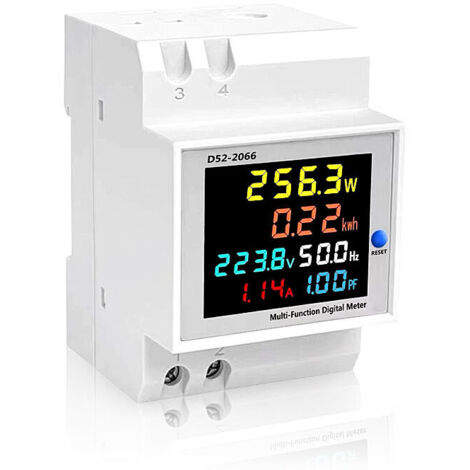

Single-Phase Electric Meter, AC250-450V 100A Smart Energy Meter, kWh Meter, Ammeter, Voltmeter, WiFi DIN-Rail Electric, Digital Energy Consumption Monitor

~~£69.34~~

Of which environmental contribution £0.10 including VAT.

Sold by Sinocor GmbH

Product information

Description

General Description

The single-phase electricity meter is a smart device designed to accurately monitor energy consumption. Featuring a color HD LCD screen and a 178° viewing angle, it offers excellent visibility day and night thanks to its backlight function. Made of flame-retardant ABS material, this meter ensures safe operation. It displays six essential parameters, including voltage, current, active power, power factor, frequency, and electrical energy, making it a versatile tool for various industrial and home environments.

Technical Specifications

Type: External Transformer
Model: D52-2066
Material: ABS
Measurement Accuracy: 1% ± 2 words
AC Current: AC 0-100 A (Display Resolution: 0.01 A)
Supply Frequency: 45.0 Hz - 65.0 Hz
Power Factor: 0.00 - 1.00 PF
Active Power: 0 to 45,000 W (Resolution: 0.1 W for 0-9,999.9 W, 1 W for the rest)
Electricity: 0 to 99,999 kWh (resolution: 0.01 kWh for 0-999.99 kWh)
Measurement speed: approximately 2 times per second
Item size: 80 * 54 * 64 mm
Item weight: 122 g
Package weight: 143 g
Package size: 9 * 7 * 6 cm

Usage

To reset the meter measurement, press and hold the RESET button on the right side of the panel for 5 seconds until the display shows 0, then release the button. The meter will then begin measuring from zero. Furthermore, it automatically records test data in the event of a power outage, ensuring continuity in energy consumption monitoring.

Features

Brand
TEHTUY
Amperage
1 A
Warranty
1 year(s)
Connectivity
Wifi
Availability of spare parts
1 year(s)
Control function
Yes
Height
1 cm
Width
1 cm
Material
Acrylonitrile butadiene styrene (ABS)
Type of electrical installation
DIN rail
Number of phase(s)
Single-phase
Power
1 W
Voltage
1 V
Meter type
Electricity
ManoMano Reference
ME99086486
MMID
936458380731
Product code
ZJL-mano-09811
EAN
6282768171633
