Single-phase energy meter, digital electric meter AC 40-300V 100A, single-phase electric meter, DIN rail wattmeter, wattmeter, kWh meter, voltmeter, ammeter, CE certified (integrated AC4 transformer)
Of which environmental contribution £0.10 including VAT.
Sold by Sinocor GmbH
You may also like
Compare with similar items
Product information
Description

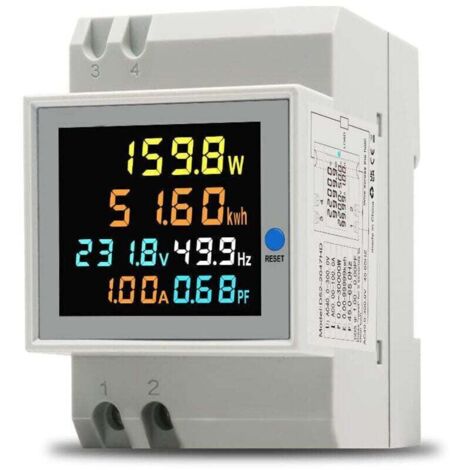

General Description
This single-phase digital energy meter is designed to accurately measure various electrical parameters. It is capable of measuring AC voltage from 40 to 300V, current up to 100A, active power up to 30,000W, energy up to 99,999 kWh, frequency between 45 and 65 Hz, and power factor from 0 to 1 pF. Its colorful HD LCD screen offers a clear view from various angles, with a backlight function for easy use day and night.Technical Specifications
- Operating Voltage: AC 40-300V
- Maximum Current: 100A
- Maximum Active Power: 30,000W
- Measurable Energy: 0-99,999 kWh
- Frequency: 45-65Hz
- Power Factor: 0-1PF
Applications
This meter is ideal for use in various environments such as schools, markets, homes, industry, and laboratories. It is easy to install and use, offering a practical solution for monitoring energy consumption.Other Information
Caution: The electricity meter can only be used to measure 50/60Hz mains electricity. It will be destroyed if used to measure square waves or non-standard sine waves.Features
- BrandTEHTUY
- Amperage1 A
- Warranty1 year(s)
- Availability of spare parts1 year(s)
- Control functionNo
- Height1 cm
- IP ratingIP20
- Width1 cm
- MaterialCross-linked Polyethylene
- Type of electrical installationVisible
- Number of modules1
- Number of phase(s)Single-phase
- Number of outlets1
- Power1 W
- Voltage1 V
- Meter typeElectricity
- ManoMano ReferenceME98975145
- MMID717433041627
- Product codeZJL-mano-06057
- EAN6282768134096
