Product information

Description

General description

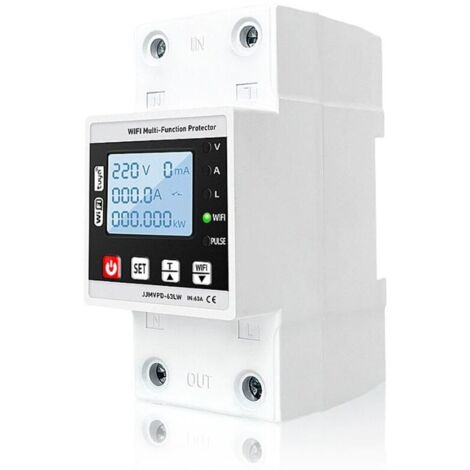

The Single Phase WiFi Relay and Smart Energy Meter is a versatile device designed for adjustable voltage and current protection. It features a kilowatt-type meter and integrates surge, underground, and overcurrent protection, all controllable via WiFi using the Tuya app. This intelligent protector can instantly shut down during overvoltage, undervoltage, or overcurrent faults, preventing damage to electrical equipment.

Technical specifications

Voltage input: AC 140-300V

Overvoltage protection value: 230-300V (Standard 270V)

Undervoltage protection value: 140-210V (Standard 170V)

Overcurrent protection value: 63A (1-63A, Standard 40A); 80A (1-80A, Standard 40A)

Recovery value at overcurrent: 0.5-62.5A (for 63A); 0.5-79.5A (for 80A)

Start delay time: 1-500s (Standard 10s)

Recovery value of overvoltage: 225-295V (Standard 265V)

Recovery value of undervoltage: 145-215V (Standard 175V)

Recover delay time: 1-500s (Standard 10s)

Current consumption: ≤2W

Electrical and mechanical life: ≥100,000 cycles

Dimensions: 96 x 45 x 68 mm

Wiring: Supra Input, external

Usage

Automatically shuts down the line during faults and restores it after normal conditions are met.

Protects against transient overvoltage and unstable voltage conditions.

Displays kilowatt-hour (Kilowati-ORA) and kilowatt (KW) readings.

Features

Brand
TINOR
Amperage
63 A
Connectivity
Wifi
Control function
Yes
Material
Plastic
Number of phase(s)
Single-phase
Weight
200 g
Voltage
300 V
Meter type
Electricity
ManoMano Reference
ME90352823
MMID
430875294390
Product code
Ti-T4367
EAN
9770750935013

Single phase wifi relay and smart energy meter, 63A, adjustable, digital, surge and overload protection, tuya
