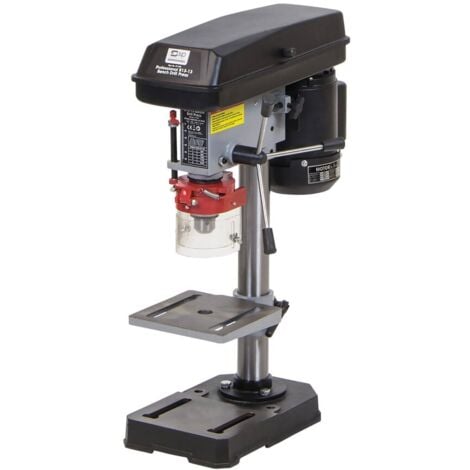

SIP 01700 - Bench Mounted Pillar Drill - 230V (13AMP)

In stock
In stock
Secure Payment
Delivery options
Free delivery (postcode specific) *
  • At home between 26/10/2021 and 27/10/2021 for any order placed before 5 pm - Free delivery (postcode specific) *
Sold by Zoro Tools
Product details
  • Phase system
    Single phase
  • Power
    350 W
  • Kind
    Drill press
  • Rotation speed
    2620 Rpm

SIP: 01700 - Bench Mounted Pillar Drill - 230V (13AMP)

This bench mounted pillar Drill has a cast iron construction with an integrated magnetic NVR switch, thermally-protected motor, and soft-grip handles.

Integrated magnetic NVR (No Volt Release) Stop/Start & Emergency Stop switch
Telescopic drill guard
Quick and easy speed adjustment
Sturdy cast iron table and base
Thermal cut out protection for prolonged life of the motor

Typical Applications:
Suited to drilling both hard and soft woods as well as metals and plastics within the manufacturing/engineering environments
MPN: 5012713017003
EAN: 5012713017003 SIP 01700 - Bench Mounted Pillar Drill - 230V (13AMP)

01700 - Bench Mounted Pillar Drill - 230V (13AMP) Attributes:

Base Size: 290 x 190mm
Chuck Size: 1.5mm
Column Diameter: 46mm
Drilling Speed Range: 620 to 2,620r/min
Feed Type: Manual
MFR Part No.: 01700
Maximum Distance Spindle to Base: 300mm
Maximum Distance Spindle to Column: 105mm
Maximum Distance Spindle to Table: 220mm
Maximum Drilling Capacity: 13mm
Motor Power: 350W
Number of Drilling Speeds: 5mm
Phase: Single Phase
Spindle Taper: B16
Spindle Travel: 50mm
Swing Distance: 210mm
Table Size: 160 x 160mm
Voltage: 230V
Weight: 14.7kg
