SJLERST Digital Clamp Meter, Multifunctional Digital Clamp Electrical Test Ammeter-Voltmeter, for AC/DC RMS Resistance Frequency, Voltage Frequency Clamp Meter

~~£80.92~~

Of which environmental contribution £0.01 including VAT.

Sold by CHAO WORLDWIDE

Product information

Description

General Description

The SJLERST digital clamp meter is a portable professional measuring device, designed to measure AC/DC voltage, AC current, resistance, as well as to perform continuity and diode tests. Easy to use with one hand, it is ideal for testing and maintaining electrical equipment.

Technical Specifications

DC Voltage: 2 ~ 600 V ± (0.8% + 5)
AC Voltage: 2.0 ~ 600 V ± (1.2% + 5)
Resistance: 200Ω ~ 200MΩ ± (1.2% + 5)
AC Current: 2 A ~ 600 A ± (2.5% + 8)
Maximum Clamping Jaw Opening: 36 mm diameter
Weight: Approx. 240 g
LCD Screen Size: Approx. 38 x 28 mm (1.5 x 1.1 inches)

Compatibility and Accessories

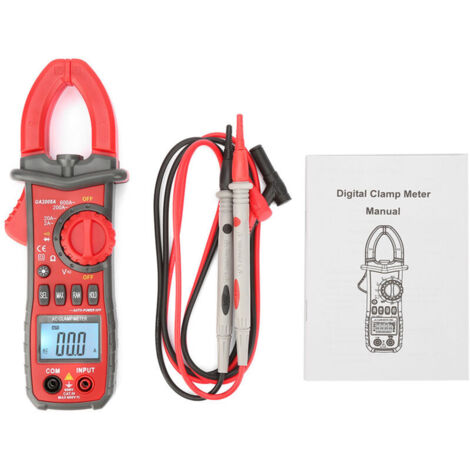

1 x Digital Clamp Multimeter (Battery Not Included)
1 x User Manual
1 x Carrying Case
2 x Test Leads

Usage

The clamp multimeter features a backlit LCD screen for easy reading. It has a data hold function, a low battery indicator, and a manual range operating mode. Additionally, it has an LED flashlight for use in dimly lit environments.

Other Information

Auto/Manual Range
Diodic Test: Yes
Switching Buzzer: Yes
Auto Power Off: Yes
Functional Protection: Yes

Features

Brand
XISRENS
Height
1 cm
Voltage
1 V
Warranty
1 year(s)
Availability of spare parts
1 year(s)
