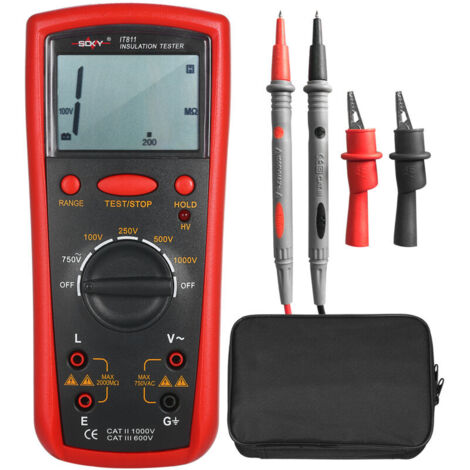

SJLERST Portable Digital Insulation Tester 0.1 MΩ-2000 MΩ, Automatic Range Selection, High Accuracy, LCD Display

~~£114.26~~

Of which environmental contribution £0.01 including VAT.

Product information

Description

Capabilities: Tests possible under various voltages: 100 V, 250 V, 500 V and 1000 V; tests possible up to 750 V AC; resistance measurement range from 0.1 MΩ to 2000 MΩ.

Convenient functions: Automatic range switching during resistance measurement; data hold function; low battery and high voltage indicator.

Large LCD display: 3.5-digit LCD screen (up to 1999 digits) for easy reading.

Safe operation: Robust housing that is dustproof and moisture-proof;

High load capacity with an output short-circuit current of approximately 1.0 mA; overvoltage protection circuit. Easy to use: Voltage selection via rotary switch; test leads, alligator clips, and kickstand included. Wide range of applications: This tester is compatible with all types of electrical equipment and insulating materials, such as transformers, electric motors, cables, switches, household appliances, etc.

Specifications:

Material: ABS

Color: Red
LCD screen dimensions: 68 × 44 mm

Power supply: 6 x 1.5V AA batteries (not included)

Operating temperature: 0 to 40°C

Relative humidity:
80%
Safety level: CAT-II 1000V and CAT-III 600V
Dimensions: 205×90×55mm

Weight: 450g

Package weight: 774g
Package dimensions: 23.2×16.2×7cm 2.75 inches

Features techniques:

Rated test voltage: 100V, 250V, 500V, 1000V

Output voltage: 90% to 110% of rated test voltage

Resistance

Measuring range: 0.1MΩ to 2,000MΩ

Resolution: 0.01MΩ

Accuracy:

0.1MΩ to 200MΩ: ±(3% of measured value + 5 significant figures)

200 MΩ to 2000 MΩ: ±(5% of measured value + 5 significant figures)

AC Voltage

Measurement Range: 1 V to 750 V

Resolution: 1 V

Accuracy: ±(2% of measured value + 5 significant figures)
Frequency Response: 40 Hz to 400 Hz

Package Contents:

1 * Insulation Tester

1 * Storage Bag * Test Leads (pair)

1 * Test Clips (pair)

1 * User Manual (English)

Features

Brand
XISRENS
Height
1 cm
Voltage
250 V
Material
Acrylonitrile butadiene styrene (ABS)
Warranty
1 year(s)
