Sliding system 170 for 1 door up to 750 mm - 1.5 m rail - 120 kg

Sliding system for an interior door
Complete kit for ceiling mounting
For 1 door up to 120 kg
For 1 door up to 750 mm
Rail: 1.5 m
Warranty: 5 years

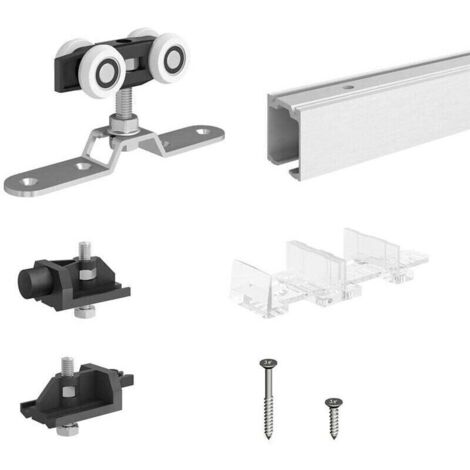

Sliding system 170 for 1 partition door - ceiling or pocket door mounting - 1.5 m rail - suspended sliding door. For surface mounting, use the optional wall brackets. Maximum door weight: 120 kg. Door thickness: 22 to 45 mm. Maximum door width: 750 mm. Note: Door not included in the kit. Robust and reliable, the 170 sliding system for interior doors ensures smooth movement Your door will open smoothly and silently thanks to the ball bearing mounts. The aluminum rails and finishing strips can be cut to the desired length to perfectly fit your door dimensions. Quick and easy installation for a custom-made interior sliding door with optional finishing strip and soft-close mechanism. Kit contents: - 1 x 1500 mm cuttable rail - 2 x mounts - 1 x stop - 1 x retaining stop - 1 x guide - 1 x set of screws. Mounting options: Mounting A: Ceiling mounting without a strip. This kit contains all the necessary components for this type of installation. Mounting B: Surface mounting with an aluminum strip. Add 4 wall mounting brackets for doors up to 45 mm thick (reference SU5233). Mounting C: Surface mounting with a wooden strip. Add 4 wall mounting brackets for doors up to 45 mm thick (reference SU5233). 3 wall mounting brackets for doors 25 to 45 mm thick (reference SU5243). Mounting D: Ceiling mounting with aluminum strip. Add 6 ceiling mounting spacers (reference SU5212). Options: SU5136: kit for an additional door; SU5478: door closer damper; SU5217: natural anodized aluminum strip - L = 1.5 m; SU5218: gold anodized aluminum strip - L = 1.5 m; SU5219: bronze anodized aluminum strip - L = 1.5 m; SU5232: synchronization kit for two doors. All spare parts for 170
