SM6236E 5-Digit 18mm Laser/Contact Tachometer LCD Digital Tachometer Rotation Counter Tester

£126.07
Of which environmental contribution £0.01 including VAT.
Sold by Sinocor GmbH

You may also like

Compare with similar items

Product information

Description

General Description

The SM6236E laser/contact tachometer is an advanced instrument designed to measure rotational speed and line speed, both contact and non-contact. It is equipped with a speed sensor with a groove, allowing for easy measurement of the speed and length of wires, cables, and ropes. This model automatically stores the maximum, minimum, and last measurement values, offering great versatility thanks to its interchangeable accessories.

Technical Specifications

  • Model: SM6236E
  • Measuring Range:
  • Photoelectric Tach: 2.5 ~ 99999 RPM
  • Contact Tach: 0.5 ~ 19999 RPM
  • Contact Line Speed: 0.05 ~ 1999.9 m/min
  • Resolution:
  • Photoelectric Tach: 0.1 rpm (2.5 ~ 999.9 rpm), 1 rpm (over 1000 rpm)
  • Contact Tach: 0.1 rpm (0.5 ~ 999.9 rpm), 1 rpm (over 1000 rpm)
  • Contact line speed: 0.01 m/min (0.05 ~ 99.99 m/min), 0.1 m/min (over 100 m/min)
  • Display: 18 mm 5-digit backlit LCD
  • Accuracy: ± (0.05% + 1 digit)
  • Sampling time: 0.5 sec (over 60 rpm)
  • Range selection: Auto-Ranging
  • Memory: Max. value, min. value, last value
  • Data storage: 96
  • Time base: 6 MHz quartz crystal
  • Detection distance: 50 to 500 mm (laser)
  • Battery: 3 x 1.5V AA batteries (not included)
  • Power consumption: approximately 50 mA
  • Color: Black
  • Size (L*W*H): 21*7.4*3.7 cm / 8.27*2.91*1.46 in
  • Weight: approximately 436 g / 15.4 oz

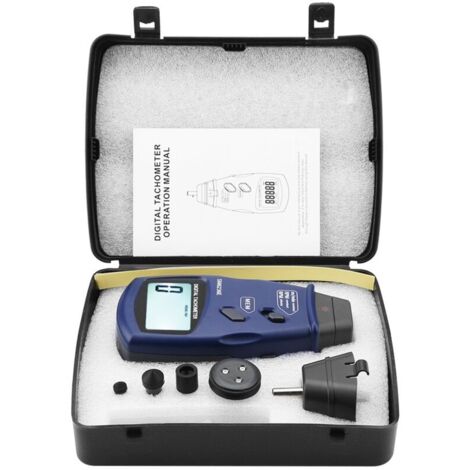

Compatibility and Accessories

  • Contact accessory
  • Photoelectric accessory
  • 3 reflective papers
  • 1 screw
  • 4 tachometer accessories
  • 1 tachometer head photoelectric
  • 1 storage case

Installation

  • Easy to use with the included accessories

Use

  • Measures rotational speed and line speed
  • Versatile use thanks to interchangeable accessories

Other information

  • Please note that colors may vary depending on monitors and lighting.
  • A slight measurement error may occur due to manual measurement.

Features

  • Brand
    TEHTUY
  • Length
    210 mm
  • Width
    74 mm
  • Height
    37 mm
  • Weight
    436 g
