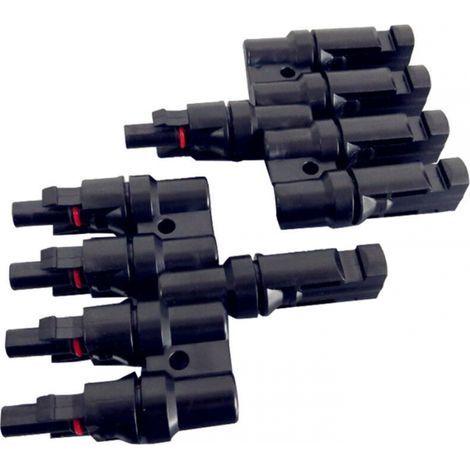

Solar connector waterproof connector male and female MC4 connector photovoltaic connector IP67 waterproof one drag four adapters

Sold by B2C Agro Top Garden GmbH and 1 other seller

Product information

Description

General descriptionThis connector is specially designed for the connection of solar photovoltaic systems, meeting high mechanical requirements and extreme weather conditions. It features a parallel branch connector, also known as a T connector, and is made from quality materials to ensure long-term reliability and performance.Technical specificationsMaterial: PPO copperRated voltage: 1000 VDCTest voltage: 6000 V (50Hz 1 min)Rated current: 50 A (2-4 mm²)Working temperature: -40℃ to 90℃Waterproof rating: IP67Max breakdown voltage: DC 1000 VFlame resistance: UL94V-0Other informationIP67 waterproof effect, effectively sealing against water and dust to prevent corrosion.Excellent aging resistance and UV endurance, capable of withstanding rain, strong winds, and snow.Fast and simple assembly process with easy removal of caps without the need for additional tools.

Features

Brand
LINGHHANG
Length
5 cm
Width
20 mm
Weight
200 g
Amperage
50 A

Advice from

How to install solar panels

Solar panel roof installation varies based on the accessories used. PV panels on a tile or slate roof can be installed over roofing underlay or a special integrated framework and solar flashing can be made of various materials including zinc, lead or plastic. Read on for the basic steps to installing solar panels.

Read our guide
