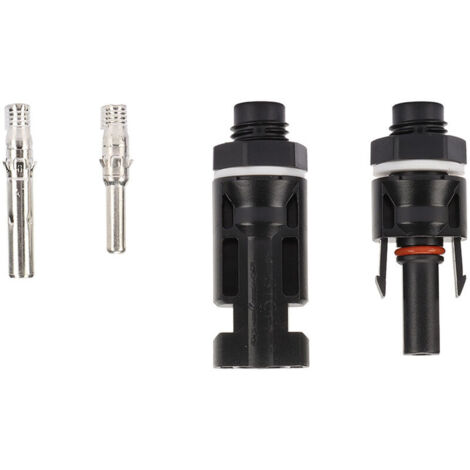

Solar panel connectors, male and female PV connectors, PV inverter combiner, 1000V DC

General Description

Solar panel connectors are designed to offer high compatibility with various insulation diameters of photovoltaic cables. They are suitable not only for PV cables, but also for small-diameter wires used in electronic lines. These connectors are distinguished by their resistance to radiation, extreme temperatures, and their ability to withstand water and dust thanks to their IP67 protection rating.

Technical Specifications

• Item Type: Solar Panel Connectors
• Material: PPO, Tinned Copper
• Gross Weight: 16 g / 0.6 oz
• Rated Current: 30 A
• Rated Voltage: 1000 V DC
• Contact Resistance: 0.2 mΩ
• Waterproof Rating: IP67
• Flame Rating: UL94 VO
• Safety Rating: Class II
• Tensile Strength: ≥ 50 N
• Insertion Force: ≥ 50 N
• Connection System: Connection Crimp connectors
• Temperature range: -40°C ~ +90°C

Compatibility and accessories

• Compatible with various PV cable insulation diameters
• Suitable for small diameter wires in electronic wiring

Installation

• Press-fit connection between male and female connectors
• Self-locking design for easy opening and closing

Applications

• Ideal for photovoltaic systems
• Used to connect solar panels together
