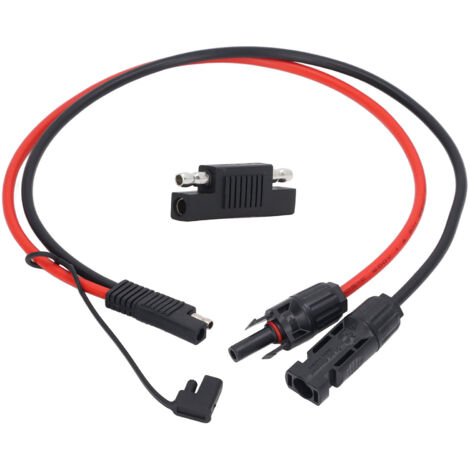

Solar Panel to SAE Adapter Cable PV Connector Solar Extension Cable with Waterproof Cap 10AWG 0.60m
You may also like
Compare with similar items
Product information
Description
1、Low Power Loss: The cable is made of premium 10AWG copper wire, which is very thick and durable, the use of 10AWG large diameter cable can minimize power loss.
2、Dustproof and Waterproof Cover: SAE connector is equipped with a dustproof and waterproof cover, which can prevent rain drops and dust, and keep the SAE connector clean and dry when not in use.
3、Good Insulation Effect: This PV connector cable has a double layer PVC sheath, the best insulation effect, 105°C heat resistance.
4、Easy to Use: Charge the portable generator through this SAE adapter cable, quickly and easily connect or disconnect the RV solar panel, and easily pull out the plug without any additional instruments.
5、Widely Used: This solar connector cable is suitable for most solar panel kits, widely used in cars, motorcycles and outdoor solar devices.
Item Type: Solar Panel to SAE Adapter Cable
Sheath Material: PVC
Gross Weight: 105g / 3.7oz
Cores Number: single
Wire Maximum Outer Diameter: Approx.5.1mm / 0.2in
Nominal Section: 5.3 (mm2)
Length: Approx.0.60m / 23.6in
Product Specification: Solar to SAE connecting cable 1015 10awg 0.60m
Interface Type: SAE
Temperature Resistance: 105℃
Scope of Application: PV connector to SAE solar connector adapter
Contact Material: all copper
Scope of Application: power supply
Power: ≤360W
Safety Voltage: ≤36V
Current: ≤30A
Width: Approx.16mm / 0.6in
Thickness: Approx.9mm / 0.4in
Exposed Male Head: Approx.9mm / 0.4in
1 x SAE Adapter
1 x Connector Cable
Features
- BrandSTUNACY
- Amperage30 A
- MaterialPVC
- Mounting methodTo be tightened
- Solar panel accessory typeConnector
