solar wind controller, 12V/24V hybrid solar wind controller for power plant
Of which environmental contribution £0.10 including VAT.
Sold by Sinocor GmbH
Product information
Description
General Description
The hybrid solar-wind controller is designed for off-grid renewable energy systems, integrating both solar and wind power. It is equipped with a large LCD screen that displays essential information such as battery status, wind power, solar power, charging voltage, and current. Thanks to its MPPT technology, it optimizes the charging efficiency of wind turbines and solar panels, allowing for simultaneous use of electricity.Technical Specifications
- Item Type: Hybrid Solar Wind Controller
- Material: Aluminum, Iron
- Weight: Approx. 2216 g
- Size: 168 x 145 x 61 mm
- Case Color: Blue
- System Rated Voltage: Automatically identified 12/24V
- Models: GPI-6060, GPI-8060, GPI-1010K
- Battery Voltage: 12V/24V
- Wind Turbine Rated Power: 300W/600W (GPI-6060), 400W/800W (GPI-8060), 500W/1000W (GPI-1010K)
- PV Module Rated Power: 300W/600W
- Maximum Input Voltage: Not Specified
- No-Load Current (DC): ≤ 0.05 A
- Operating Temperature Range: -20 ~ +55 ℃
- Operating Humidity: 35 ~ 85% RH (Non-Condensing)
Compatibility and Accessories
- Compatible Batteries: Lithium and Lead Acid Batteries
- Application: Hybrid Solar Wind Power Plant, Hybrid Monitoring System, Hybrid Lighting System

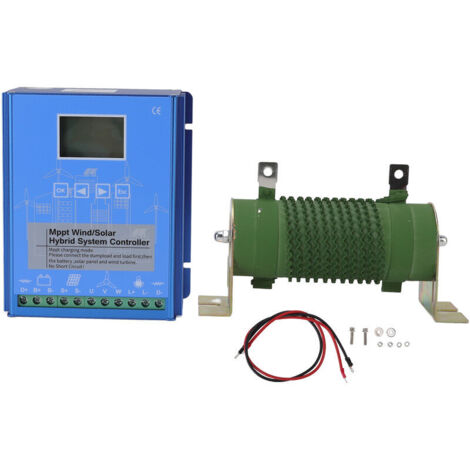

- Included Accessories: 1 x Main Control Unit, 1 x Resistor, 2 x Cables, 2 x Screws, 2 x Nuts, 2 x Washers, 1 Manual
Installation
To install the controller, follow the instructions provided in the manual. Ensure all connections are secure and the battery is properly connected to prevent malfunctions.Operation
The controller efficiently manages the charging and discharging of renewable energy systems. It offers several operating modes, including light control and timers, to suit various energy needs. The LCD display provides real-time information on system performance.Other Information
- The circuit board is protected against dust, moisture, and static electricity by a triple-layer coating.
- The controller has several protection features, including reverse charging, open circuit, and overcurrent protection.
Features
- BrandTEHTUY
- Warranty1 year(s)
- Amperage1 A
- MaterialAluminium
- Weight2216 g
