Speed Controller for 220V AC 10A 4000W SCR Motor, Electronic Voltage Regulator, Governor, Dimmer, Thermostat, Motor, Fan Speed Controller

General Description

The speed controller is designed to control the speed of 220V AC motors, with a maximum capacity of 10A and 4000W. It allows for voltage and temperature regulation, as well as dimming, thus meeting various power requirements for most fans and brushed power tools. This regulator offers optimal performance with continuous voltage adjustment, without hysteresis or delay, ensuring a fast response.

Technical Specifications

• Input Voltage: AC 220V
• Output Voltage: 0-220V adjustable
• Frequency: 50/60Hz
• Maximum Power: 4000W (suitable for a 2000W resistive load)
• Rated Current: 10A
• Maximum Current: 18A (10A-15A overload protection)

Compatibility and Accessories

The speed controller is compatible with various devices such as heating tubes, electric ovens, tungsten lamps, small motors, electric soldering irons, and electric drills, for devices with a power rating of greater than 1000W.

Installation

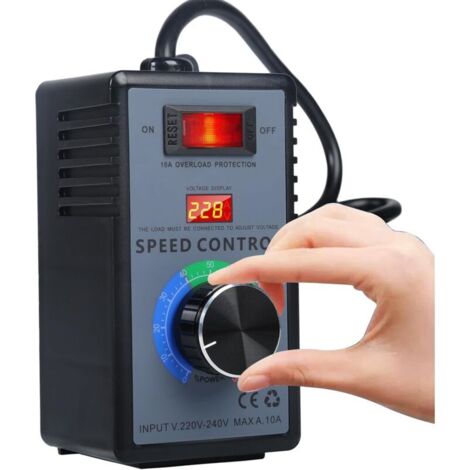

The controller housing is equipped with a multi-purpose socket and a power indicator light, making it easy to use.

Operation

For optimal use, turn the SCR voltage controller knob to 0 when not in use. This controller is not suitable for pumps and motors with capacitors or without carbon brushes, which cannot tolerate voltage and speed reduction.
