Square Bolt (C Bolt) M8 x 30 mm Thread, 50 x 70 mm Internal Dimensions - T316 Stainless Steel (A4)

Sold by Graphskill

Often purchased together

Product information

Description

General description

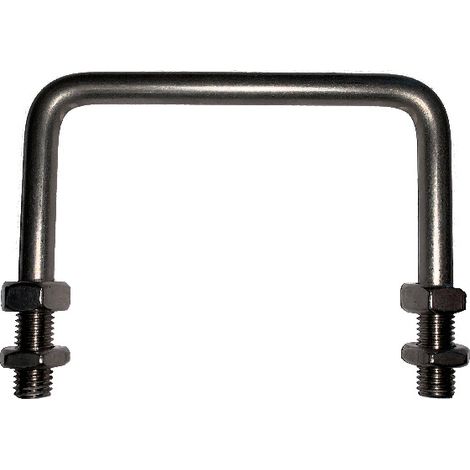

Square bolt (C bolt) made from T316 stainless steel, also known as marine grade stainless steel (A4). This product features internal dimensions of 50 mm ID and 70 mm IH, and comes complete with one full nut and one half nut on each leg.

Technical specifications

  • Thread size: M8
  • Length: 30 mm
  • Internal dimensions: 50 mm ID x 70 mm IH
  • Material: T316 Stainless Steel (A4)
  • Tolerance on dimensions: +/- 1 mm
  • Bar diameter is slightly less than the thread diameter due to roll threading
  • Diagram measurements:
  • A = 8 mm
  • B = 50 mm
  • C = 70 mm
  • D = 30 mm
  • Centers = 58 mm
  • R (inside radius) = 4 mm

    • Features

    • Brand
      GRAPHSKILL
    • Material
      Stainless steel
    • Colour
      Grey
    • Length
      30 mm
    • Type of bolt
      Classic
    • ManoMano Reference
      ME990705
    • MMID
      842206789740
    • Product code
      CBOLT/T316/M8*50*70*30*4
    • EAN
      5055624416695
