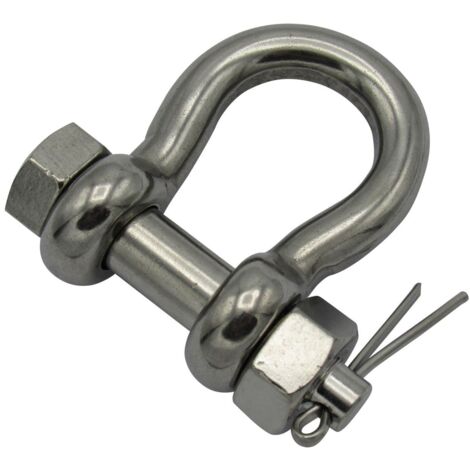

Stainless Steel Bow Shackle with Safety Pin 1 Ton 10MM (Marine Lifting Load Rated)

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account
Sold by SecureFix Direct

You may also like

Stainless Steel Strip Dee Shackle 5MM (D Flat Rigging Marine Rope)SECUREFIX DIRECT

Stainless Steel Strip Dee Shackle 5MM (D Flat Rigging Marine Rope)

Free shipping
X10 25MM Zinc Plated Simplex Hooks - Dog Clip Lanyards Camping Craft Wim WomSECUREFIX DIRECT

X10 25MM Zinc Plated Simplex Hooks - Dog Clip Lanyards Camping Craft Wim Wom

1
Free shipping
Stainless Steel Carbine Hook Egg Shaped 6MM x 60MM (Carabiner Snap Hook)SECUREFIX DIRECT

Stainless Steel Carbine Hook Egg Shaped 6MM x 60MM (Carabiner Snap Hook)

1
Free shipping
Long D Shackle Stainless Steel 6MM (Marine Boat Rigging Sails Halyards Dee)SECUREFIX DIRECT

Long D Shackle Stainless Steel 6MM (Marine Boat Rigging Sails Halyards Dee)

Free shipping
Long D Shackle Stainless Steel 10MM (Marine Boat Rigging Sails Halyards Dee)SECUREFIX DIRECT

Long D Shackle Stainless Steel 10MM (Marine Boat Rigging Sails Halyards Dee)

Free shipping
Eye Sling Hook with Latch Stainless Steel 6MM (Safety Chain Slip Marine)SECUREFIX DIRECT

Eye Sling Hook with Latch Stainless Steel 6MM (Safety Chain Slip Marine)

Free shipping
Lifting Chain Connector Grade 100 10MM (G10 4 Ton Component Connector 4T)SECUREFIX DIRECT

Lifting Chain Connector Grade 100 10MM (G10 4 Ton Component Connector 4T)

Free shipping
Stainless Steel Bow Shackle with Safety Pin 2 Ton 12MM (Marine Lifting Load Rated)SECUREFIX DIRECT

Stainless Steel Bow Shackle with Safety Pin 2 Ton 12MM (Marine Lifting Load Rated)

Free shipping
Stainless Steel Rigging Screw with Terminal Each End M5 (2.5MM Wire Cable Railing Balustrade)SECUREFIX DIRECT

Stainless Steel Rigging Screw with Terminal Each End M5 (2.5MM Wire Cable Railing Balustrade)

Free shipping
1 Ton Piling Shackle Self Colour - Long Body Dee D Tested CertifiedSECUREFIX DIRECT

1 Ton Piling Shackle Self Colour - Long Body Dee D Tested Certified

Free shipping
3.25 Ton Dee Shackle with Screw Pin - Lifting 3250KG 5/8" x 3/4"SECUREFIX DIRECT

3.25 Ton Dee Shackle with Screw Pin - Lifting 3250KG 5/8" x 3/4"

Free shipping
1 3/4" x 8 1/4" CAT 1-2 Top Link Miscellaneous Pin - Tractor Connector Linkage Attachment MiscSECUREFIX DIRECT

1 3/4" x 8 1/4" CAT 1-2 Top Link Miscellaneous Pin - Tractor Connector Linkage Attachment Misc

Free shipping
Safety Pin Bow Shackles X2 - 2 Ton Galvanised 16MM 2000KG OmegaSECUREFIX DIRECT

Safety Pin Bow Shackles X2 - 2 Ton Galvanised 16MM 2000KG Omega

Free shipping
4.75 Ton Bow Shackle With Screw Pin - Lifting 4750KG 3/4" x 7/8"SECUREFIX DIRECT

4.75 Ton Bow Shackle With Screw Pin - Lifting 4750KG 3/4" x 7/8"

Free shipping
5 Ton Self Colour Large Dee Shackle With Screw Pin - 5000KG D High Tensile Lifting TowingSECUREFIX DIRECT

5 Ton Self Colour Large Dee Shackle With Screw Pin - 5000KG D High Tensile Lifting Towing

Free shipping
8.5 Ton With Screw Pin Bow Shackle - Lifting 8500KG 1" x 1.1/8"SECUREFIX DIRECT

8.5 Ton With Screw Pin Bow Shackle - Lifting 8500KG 1" x 1.1/8"

Free shipping
X2 0.25 Ton Self Colour Large Dee Shackles With Screw Pin - 250KG D High Tensile Lifting TowingSECUREFIX DIRECT

X2 0.25 Ton Self Colour Large Dee Shackles With Screw Pin - 250KG D High Tensile Lifting Towing

Free shipping
Stainless Steel Twisted D Shackle 6MM (Rigging Marine Rope Dee)SECUREFIX DIRECT

Stainless Steel Twisted D Shackle 6MM (Rigging Marine Rope Dee)

Free shipping
Stainless Steel Long Dee Shackle Captive Screw 8MM (Marine Fishing Boat Trawler D Connector)SECUREFIX DIRECT

Stainless Steel Long Dee Shackle Captive Screw 8MM (Marine Fishing Boat Trawler D Connector)

Free shipping
Stainless Steel Long Dee Shackle Captive Screw 4MM (Marine Fishing Boat Trawler D Connector)SECUREFIX DIRECT

Stainless Steel Long Dee Shackle Captive Screw 4MM (Marine Fishing Boat Trawler D Connector)

Free shipping

Compare with similar items

Often purchased together

Product information

Description

General description

Stainless Steel Bow Shackle with Safety Pin is designed for marine lifting applications, rated for a safe working load of 1 ton. Made from 316 Grade Stainless Steel (A4), these shackles feature safety (anchor) pins that prevent accidental loosening, ensuring maximum safety during use. They are suitable for a variety of lifting tasks.

Technical specifications

  • Material: 316 Grade Stainless Steel (A4)
  • Safe Working Load: 1 Ton
  • Safety Factor: 4:1
  • Product Codes and Dimensions:
  • SFSSLRB1: A=9.7 MM, B=12 MM, C=17.9 MM, D=23.8 MM, E=37.2 MM, F=26.2 MM, G=13.1 MM, H=65 MM
  • SFSSLRB2: A=12 MM, B=16 MM, C=21 MM, D=31 MM, E=47 MM, F=33 MM, G=16.5 MM, H=81 MM
  • SFSSLRB3: A=15.5 MM, B=19.5 MM, C=27 MM, D=39 MM, E=61 MM, F=43 MM, G=21.5 MM, H=104.5 MM
  • SFSSLRB4: A=18.5 MM, B=21 MM, C=37.5 MM, D=42.5 MM, E=74 MM, F=53 MM, G=26.5 MM, H=123.5 MM
  • SFSSLRB5: A=21.5 MM, B=24 MM, C=33.5 MM, D=51.5 MM, E=82.5 MM, F=56.5 MM, G=28 MM, H=141 MM
  • SFSSLRB6: A=25 MM, B=27.5 MM, C=39.5 MM, D=57.5 MM, E=95 MM, F=65.5 MM, G=32.5 MM, H=160 MM

    • Other information

  • Test Certificate Supplied (Sent Via Email)

    • Features

    • Brand
      SECUREFIX DIRECT
    • Pcs per pack
      1
    • Weight
      100 g
    • Maximum load
      1000 kg
    • Shackle shape
      Lyre
    • Material
      Stainless steel
    • ManoMano Reference
      ME27129843
    • MMID
      296324436041
    • Product code
      SFSSLRB1
    • EAN
      707152579407
