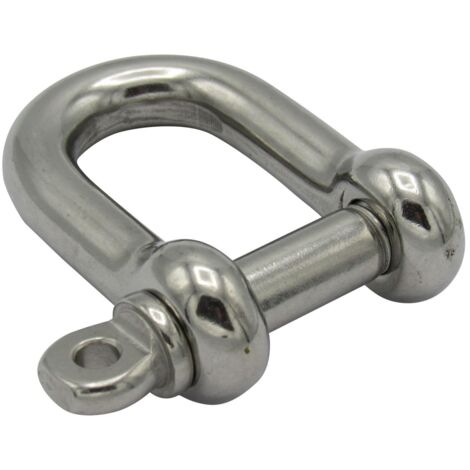

Stainless Steel D Shackle with Screw Collar Pin 10MM (SS Dee Rigging 316 Marine)

Sold by SecureFix Direct

You may also like

8mm STAINLESS STEEL 316 (A4) Long D shackle

8mm STAINLESS STEEL 316 (A4) Long D shackle

1
10mm STAINLESS STEEL 316 (A4) Long D shackle

10mm STAINLESS STEEL 316 (A4) Long D shackle

1
12mm STAINLESS STEEL 316 (A4) D shackle
#1 in sales

12mm STAINLESS STEEL 316 (A4) D shackle

1
8mm STAINLESS STEEL 316 (A4) Spring Hook / carabiner

8mm STAINLESS STEEL 316 (A4) Spring Hook / carabiner

1
Stainless Steel Strip Dee Shackle 5MM (D Flat Rigging Marine Rope)SECUREFIX DIRECT

Stainless Steel Strip Dee Shackle 5MM (D Flat Rigging Marine Rope)

Free shipping
X10 25MM Zinc Plated Simplex Hooks - Dog Clip Lanyards Camping Craft Wim WomSECUREFIX DIRECT

X10 25MM Zinc Plated Simplex Hooks - Dog Clip Lanyards Camping Craft Wim Wom

1
Free shipping
Stainless Steel Carbine Hook Egg Shaped 6MM x 60MM (Carabiner Snap Hook)SECUREFIX DIRECT

Stainless Steel Carbine Hook Egg Shaped 6MM x 60MM (Carabiner Snap Hook)

1
Free shipping
M18 Lifting Eye Bolt - Self Coloured Collared Threaded Eyebolt BS4278 1 Ton 18MMSECUREFIX DIRECT

M18 Lifting Eye Bolt - Self Coloured Collared Threaded Eyebolt BS4278 1 Ton 18MM

Free shipping
3.25 Ton Dee Shackle with Screw Pin - Lifting 3250KG 5/8" x 3/4"SECUREFIX DIRECT

3.25 Ton Dee Shackle with Screw Pin - Lifting 3250KG 5/8" x 3/4"

Free shipping
1 3/4" x 8 1/4" CAT 1-2 Top Link Miscellaneous Pin - Tractor Connector Linkage Attachment MiscSECUREFIX DIRECT

1 3/4" x 8 1/4" CAT 1-2 Top Link Miscellaneous Pin - Tractor Connector Linkage Attachment Misc

Free shipping
Adjustable Head 30 in 1 Socket Wrench - Ratchet Bolt Tool DIY Garage Mechanic MultiSECUREFIX DIRECT

Adjustable Head 30 in 1 Socket Wrench - Ratchet Bolt Tool DIY Garage Mechanic Multi

Free shipping
2.75 Ton Galvanised Large Bow Shackle With Screw Pin - BS3032 2750KG Lifting Towing TestedSECUREFIX DIRECT

2.75 Ton Galvanised Large Bow Shackle With Screw Pin - BS3032 2750KG Lifting Towing Tested

Free shipping
22MM 7.6Ton Grade 80 FRAM Pear Shaped A Link 22.A.6 - G80 Masterlink Lifting EGG EN1677-4SECUREFIX DIRECT

22MM 7.6Ton Grade 80 FRAM Pear Shaped A Link 22.A.6 - G80 Masterlink Lifting EGG EN1677-4

Free shipping
25MM 10.7 Ton Grade 80 FRAM Single Master Link With Flat 25.B.6 - G80 Chain Lifting Gear EN1677-4SECUREFIX DIRECT

25MM 10.7 Ton Grade 80 FRAM Single Master Link With Flat 25.B.6 - G80 Chain Lifting Gear EN1677-4

Free shipping
Master Link With Handles 6T (Lifeboat Lifting Grade 80 FRAM 28MM)SECUREFIX DIRECT

Master Link With Handles 6T (Lifeboat Lifting Grade 80 FRAM 28MM)

Free shipping
13.5 Ton Bow Shackle With Screw Pin - Lifting 13500KG 1.3/8" x 1.1/2"SECUREFIX DIRECT

13.5 Ton Bow Shackle With Screw Pin - Lifting 13500KG 1.3/8" x 1.1/2"

1
Free shipping
X2 0.25 Ton Self Colour Large Dee Shackles With Screw Pin - 250KG D High Tensile Lifting TowingSECUREFIX DIRECT

X2 0.25 Ton Self Colour Large Dee Shackles With Screw Pin - 250KG D High Tensile Lifting Towing

Free shipping
Winch Hook 3/8 Inch Clevis Forged G70. For Winches up to 14,000lbWINCHMAX

Winch Hook 3/8 Inch Clevis Forged G70. For Winches up to 14,000lb

Free shipping
6mm STAINLESS STEEL 316 (A4) Long D shackle

6mm STAINLESS STEEL 316 (A4) Long D shackle

1
Galvanised Longshank Eyebolt with Nut and Washer (Threaded Steel Collared Bolt) 8MM x 110MMSECUREFIX DIRECT

Galvanised Longshank Eyebolt with Nut and Washer (Threaded Steel Collared Bolt) 8MM x 110MM

Free shipping

Compare with similar items

Product information

Description

General description

These Stainless Steel D Shackles with Screw Collar Pins are designed for a wide range of applications, particularly in the marine industry. Made from high-quality 316 grade stainless steel, they offer excellent rust protection and durability, making them suitable for various environments.

Technical specifications

  • Material: 316 Grade Stainless Steel
  • Breaking Load: Up to 22827 KG
  • Available Sizes:
  • SFSSD04: Breaking Load 591 KG, A 4 MM, B 4 MM, C 14.75 MM, D 7.5 MM, E 8 MM
  • SFSSD05: Breaking Load 928 KG, A 5 MM, B 5 MM, C 18 MM, D 10 MM, E 10.5 MM
  • SFSSD06: Breaking Load 1346 KG, A 6 MM, B 6 MM, C 22 MM, D 11.5 MM, E 11.7 MM
  • SFSSD08: Breaking Load 2417 KG, A 7.5 MM, B 8 MM, C 29 MM, D 17 MM, E 16 MM
  • SFSSD10: Breaking Load 3804 KG, A 10 MM, B 10 MM, C 34 MM, D 20 MM, E 20 MM
  • SFSSD12: Breaking Load 5599 KG, A 11.5 MM, B 12 MM, C 40.5 MM, D 25 MM, E 24 MM
  • SFSSD16: Breaking Load 9965 KG, A 16 MM, B 16 MM, C 54 MM, D 32.5 MM, E 31.5 MM
  • SFSSD20: Breaking Load 13882 KG, A 18 MM, B 19 MM, C 68.25 MM, D 40 MM, E 38.25 MM
  • SFSSD22: Breaking Load 18839 KG, A 22 MM, B 21.5 MM, C 78.5 MM, D 45 MM, E 43.5 MM
  • SFSSD25: Breaking Load 22827 KG, A 25.5 MM, B 25.5 MM, C 87 MM, D 52 MM, E 50 MM

    • Features

    • Brand
      SECUREFIX DIRECT
    • Pcs per pack
      1
    • NF certification
      NF316
    • Warranty
      1 year(s)
    • Weight
      100 g
