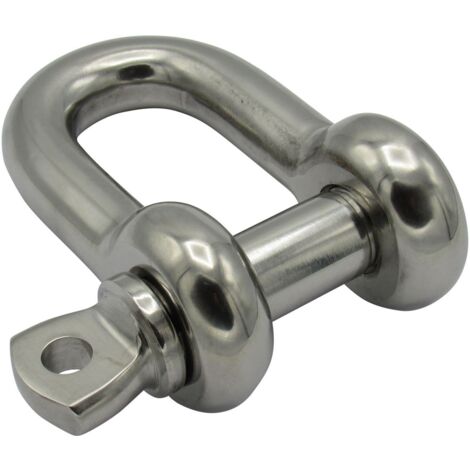

Stainless Steel D Shackle with Screw Pin 5 Ton 22MM x 26MM (Dee Locking)

Sold by SecureFix Direct

You may also like

10mm STAINLESS STEEL 316 (A4) Long D shackle

10mm STAINLESS STEEL 316 (A4) Long D shackle

1
12mm STAINLESS STEEL 316 (A4) D shackle

12mm STAINLESS STEEL 316 (A4) D shackle

1
X10 25MM Zinc Plated Simplex Hooks - Dog Clip Lanyards Camping Craft Wim WomSECUREFIX DIRECT
#1 in sales

X10 25MM Zinc Plated Simplex Hooks - Dog Clip Lanyards Camping Craft Wim Wom

1
Free shipping
Stainless Steel Carbine Hook Egg Shaped 6MM x 60MM (Carabiner Snap Hook)SECUREFIX DIRECT

Stainless Steel Carbine Hook Egg Shaped 6MM x 60MM (Carabiner Snap Hook)

1
Free shipping
M18 Lifting Eye Bolt - Self Coloured Collared Threaded Eyebolt BS4278 1 Ton 18MMSECUREFIX DIRECT

M18 Lifting Eye Bolt - Self Coloured Collared Threaded Eyebolt BS4278 1 Ton 18MM

Free shipping
3.25 Ton Dee Shackle with Screw Pin - Lifting 3250KG 5/8" x 3/4"SECUREFIX DIRECT

3.25 Ton Dee Shackle with Screw Pin - Lifting 3250KG 5/8" x 3/4"

Free shipping
Adjustable Head 30 in 1 Socket Wrench - Ratchet Bolt Tool DIY Garage Mechanic MultiSECUREFIX DIRECT

Adjustable Head 30 in 1 Socket Wrench - Ratchet Bolt Tool DIY Garage Mechanic Multi

Free shipping
2.75 Ton Galvanised Large Bow Shackle With Screw Pin - BS3032 2750KG Lifting Towing TestedSECUREFIX DIRECT

2.75 Ton Galvanised Large Bow Shackle With Screw Pin - BS3032 2750KG Lifting Towing Tested

Free shipping
22MM 7.6Ton Grade 80 FRAM Pear Shaped A Link 22.A.6 - G80 Masterlink Lifting EGG EN1677-4SECUREFIX DIRECT

22MM 7.6Ton Grade 80 FRAM Pear Shaped A Link 22.A.6 - G80 Masterlink Lifting EGG EN1677-4

Free shipping
25MM 10.7 Ton Grade 80 FRAM Single Master Link With Flat 25.B.6 - G80 Chain Lifting Gear EN1677-4SECUREFIX DIRECT

25MM 10.7 Ton Grade 80 FRAM Single Master Link With Flat 25.B.6 - G80 Chain Lifting Gear EN1677-4

Free shipping
4.75 Ton Galvanised Large Bow Shackle With Screw Pin - BS3032 4750KG Lifting Towing TestedSECUREFIX DIRECT

4.75 Ton Galvanised Large Bow Shackle With Screw Pin - BS3032 4750KG Lifting Towing Tested

Free shipping
Master Link With Handles 6T (Lifeboat Lifting Grade 80 FRAM 28MM)SECUREFIX DIRECT

Master Link With Handles 6T (Lifeboat Lifting Grade 80 FRAM 28MM)

Free shipping
7.25 Ton Galvanised Large Bow Shackle With Screw Pin - BS3032 7250KG Lifting Towing TestedSECUREFIX DIRECT

7.25 Ton Galvanised Large Bow Shackle With Screw Pin - BS3032 7250KG Lifting Towing Tested

Free shipping
Safety Pin Bow Shackle - 12 Ton Galvanised 35MM 12000KG OmegaSECUREFIX DIRECT

Safety Pin Bow Shackle - 12 Ton Galvanised 35MM 12000KG Omega

Free shipping
Heavy Duty Tow Strap 9 Ton 4 Metre with Shackles (9T 4M Recovery Towing Strop)SECUREFIX DIRECT

Heavy Duty Tow Strap 9 Ton 4 Metre with Shackles (9T 4M Recovery Towing Strop)

Free shipping
13.5 Ton Bow Shackle With Screw Pin - Lifting 13500KG 1.3/8" x 1.1/2"SECUREFIX DIRECT

13.5 Ton Bow Shackle With Screw Pin - Lifting 13500KG 1.3/8" x 1.1/2"

1
Free shipping
Heavy Duty Tow Strap 12 Ton 5 Metre with Shackles (12T 5M Recovery Towing Strop)SECUREFIX DIRECT

Heavy Duty Tow Strap 12 Ton 5 Metre with Shackles (12T 5M Recovery Towing Strop)

Free shipping
X2 0.25 Ton Self Colour Large Dee Shackles With Screw Pin - 250KG D High Tensile Lifting TowingSECUREFIX DIRECT

X2 0.25 Ton Self Colour Large Dee Shackles With Screw Pin - 250KG D High Tensile Lifting Towing

Free shipping
Winch Hook 3/8 Inch Clevis Forged G70. For Winches up to 14,000lbWINCHMAX

Winch Hook 3/8 Inch Clevis Forged G70. For Winches up to 14,000lb

Free shipping
Aluminiuum Adjustable Boat Seat Pedestal Sliding (High Base Marine Fishing Speedboat)SECUREFIX DIRECT

Aluminiuum Adjustable Boat Seat Pedestal Sliding (High Base Marine Fishing Speedboat)

Free shipping

Compare with similar items

Product information

Description

General description

Stainless Steel D Shackle with Screw Pin, designed for heavy-duty applications with a safe working load of 5 tons. Made from 316 Grade Stainless Steel (A4), these shackles are ideal for various lifting and securing tasks, ensuring high safety standards during use.

Technical specifications

  • Material: 316 Grade Stainless Steel (A4)
  • Safe Working Load: 5 Ton
  • Safety Factor: 4:1
  • Dimensions:
  • Product Code SFSSLRD1: A: 9.5 MM, B: 12 MM, C: 33.5 MM, D: 18.5 MM, E: 24 MM
  • Product Code SFSSLRD2: A: 12 MM, B: 15.5 MM, C: 40 MM, D: 21 MM, E: 30.5 MM
  • Product Code SFSSLRD3: A: 15 MM, B: 19.5 MM, C: 51 MM, D: 28 MM, E: 38 MM
  • Product Code SFSSLRD4: A: 19.5 MM, B: 21.5 MM, C: 62 MM, D: 36 MM, E: 45 MM
  • Product Code SFSSLRD5: A: 21.5 MM, B: 24.5 MM, C: 75 MM, D: 38.5 MM, E: 53 MM
  • Product Code SFSSLRD6: A: 24 MM, B: 27.5 MM, C: 83.5 MM, D: 45 MM, E: 60 MM

    • Other information

  • Test Certificate Supplied (Sent Via Email)

    • Features

    • Brand
      SECUREFIX DIRECT
    • Pcs per pack
      1
    • NF certification
      NF316
    • Warranty
      1 year(s)
    • Maximum load
      5000 kg
    • Inside diameter
      22 mm
    • Material
      Stainless steel
    • ManoMano Reference
      ME54526004
    • MMID
      293827488722
    • Product code
      SFSSLRD5
    • EAN
      707152579490
