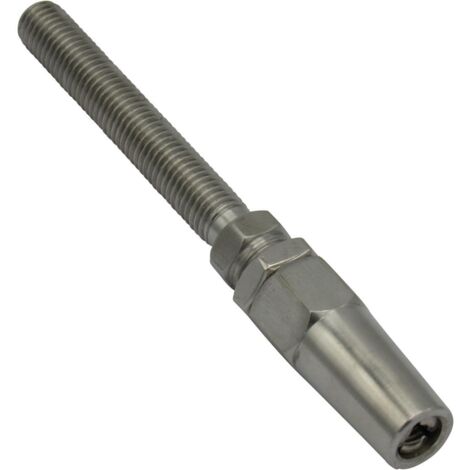

Stainless Steel Swageless Threaded Stud M10 (6MM Wire Rigging Terminal Tensioner)

Name: Stainless Steel Swageless Threaded Stud M10 (6MM Wire Rigging Terminal Tensioner)
Brand: SECUREFIX DIRECT
SKU: SFSSSSS06A
Price: 19.95 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

Our Stainless Steel Swageless Screwed Terminals are designed for terminating wire rope, providing a professional-looking finish for applications such as wire balustrades. Made from 316 Grade Stainless Steel, these terminals offer excellent corrosion resistance and are easier to use than traditional swaged versions, as they do not require any additional tools for installation.

Technical specifications

Product Code: SFSSSSS06A

Product Weight: 0.14 kg

Wire Diameter Suitability: 6 mm

Thread Size: 10 mm

Material: 316 Grade Stainless Steel

Dimensions:

A: 6 mm

B: 19 mm

C: 10 mm

D: 62 mm

E: 63 mm

Installation

These swageless terminals allow for easy installation, making them suitable for use both onsite and at home. It is important to note that installation should always be performed by a competent person. For added protection, it is advised to use marine grade sealant to prevent water intrusion in the terminal.
