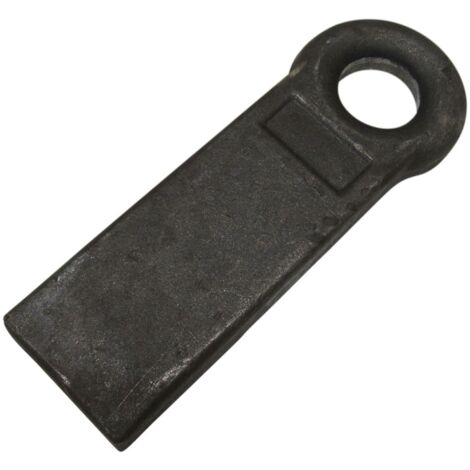

Straight Trailer Hitch Eye Heavy Duty 12" Mild Steel (82 Ton Weld On Towing Ring)

Name: Straight Trailer Hitch Eye Heavy Duty 12" Mild Steel (82 Ton Weld On Towing Ring)
Brand: SECUREFIX DIRECT
SKU: SFAG0104A
Price: 36 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

Heavy Duty Straight Trailer Hitch Eye made from mild steel, designed for welding onto trailers. This towing ring serves as a reliable attachment point for towing applications.

Technical specifications

Material: Mild Steel

Product Codes and Dimensions:

SFAG0100A: A=128 mm, B=31.5 mm, C=91.5 mm, D=110 mm, E=50.5 mm, Max Breaking Load=24 Ton

SFAG0100B: A=305 mm, B=30 mm, C=88 mm, D=110.5 mm, E=50.5 mm, Max Breaking Load=24 Ton

SFAG0100C: A=405 mm, B=30.5 mm, C=93 mm, D=113 mm, E=51 mm, Max Breaking Load=24 Ton

SFAG0100D: A=460 mm, B=31.5 mm, C=91 mm, D=110.5 mm, E=50 mm, Max Breaking Load=24 Ton

SFAG0101A: A=307 mm, B=30.5 mm, C=91 mm, D=112 mm, E=51 mm, Max Breaking Load=35 Ton

SFAG0101B: A=407 mm, B=31.5 mm, C=91 mm, D=112.5 mm, E=50.5 mm, Max Breaking Load=35 Ton

SFAG0104: A=308 mm, B=41 mm, C=93.5 mm, D=113 mm, E=50.5 mm, Max Breaking Load=112 Ton

SFAG0104A: A=304 mm, B=42.5 mm, C=91 mm, D=113 mm, E=51 mm, Max Breaking Load=82 Ton

Installation

Welding should be performed by a qualified person. General guidelines include:

Always preheat the area before welding.

Avoid tack welding or short thin runs.

Usage

This trailer hitch eye is designed for heavy-duty towing applications, providing a secure attachment point for various towing needs.

Other information

Shotblasted and finished in self-colour.

Towing eye bushes are available to fit directly into the eye, allowing the use of a pin instead of a tow ball.

Various trailer hitch eyes and a wide range of agricultural products are also supplied.

Features

Brand
SECUREFIX DIRECT
Warranty
1 year(s)
Pcs per pack
1
Maximum load
82 kg
Colour
Multicolour
Height
9.1 cm
Length
30.8 cm
Material
Steel
Weight
100 g
ManoMano Reference
ME27139370
MMID
268941841542
Product code
SFAG0104A
EAN
600988489301
