SVP-60L single-phase surge protector, automatic voltage protection device, 40A electrical circuit breaker MUMU

Name: SVP-60L single-phase surge protector, automatic voltage protection device, 40A electrical circuit breaker MUMU
Brand: MUMU
SKU: XHWD-M-XXW-6209
Price: 15.17 GBP
Availability: InStock

~~£21.67~~

Of which environmental contribution £0.01 including VAT.

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by Permu UK

Product information

Description

General description

The SVP-60L single-phase surge protector is an automatic voltage protection device designed to safeguard electrical circuits. It features a modular design and is suitable for use in various applications, including electrical distribution cabinets, distribution boxes, electrical control boxes, and power supplies for electronic and telecommunications equipment.

Technical specifications

Current rating: 40A

Automatic recovery after overvoltage and undervoltage events

High-quality electronic components for reliable performance

Usage

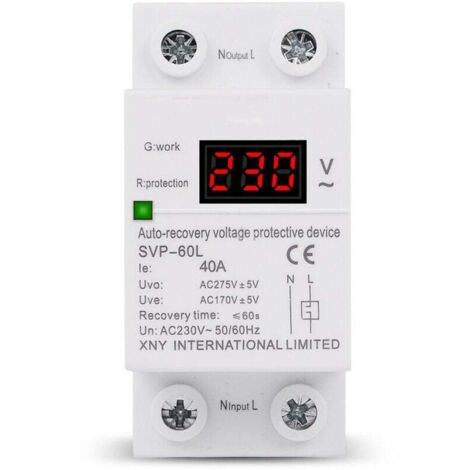

The device automatically activates its protection function when the power supply is unstable. It monitors, controls, and protects the voltage to ensure the safety of electrical equipment and personnel. The green light indicates normal operation, while the red light signals overvoltage or undervoltage conditions.

Other information

When power returns to normal, the device will restart after a one-minute delay.

Features

Brand
MUMU
Height
50 mm
Amperage
40 A
Width
100 mm
Material
Plastic
Type of electrical installation
DIN rail
Number of modules
1
Number of phase(s)
Single-phase
Weight
500 g
Compatible network
Single-phase 230 V
Voltage
25 V
ManoMano Reference
ME93533704
MMID
754194032852
Product code
XHWD-M-XXW-6209
EAN
6941454622551
