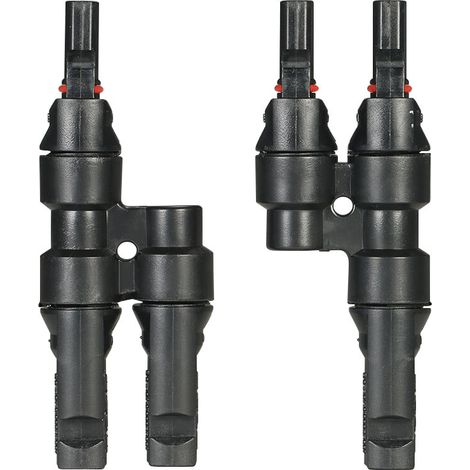

T connector MC4 solar connector waterproof three-way connector

£23.54
Of which environmental contribution £0.10 including VAT.
Sold by AGUOHC

You may also like

Compare with similar items

Often purchased together

Product information

Description

General description

The T connector MC4 solar connector is a waterproof three-way connector designed for the parallel connection of solar panels (PV modules). It features both male (MMF) and female (FFM) connectors, ensuring reliable and secure connections. These connectors are specifically engineered for waterproof and leakproof performance, making them ideal for outdoor use.

Technical specifications

  • Rated voltage: 1000V/DC
  • Surge type: CAT III
  • Contact material: galvanized copper II
  • Insertion force: ≤ 50N
  • Pulling force: ≥ 50N
  • Test voltage: 6000V (50Hz, 1min)
  • Contact resistance: ≤ 5mΩ
  • Shell material: OPP
  • Diameter of adapter wire: 2.5~6.0mm²
  • Working temperature: -40℃ to +110℃
  • Single core cable section: 1.5mm² to 6mm²
  • Other information

  • Standard self-locking key connectors for easy installation
  • O-rings for sealing out water and dust to prevent corrosion
  • Extremely resistant to low temperatures and water
  • Features

    • Brand
      LINGHHANG
    • Length
      10.8 cm
    • Width
      45 mm
    • Height
      20 mm
    • Weight
      400 g
