Telephone Connector, 174 pieces UY/UY2/UR/UR2/UG Telephone Wire Connector, Splice Connectors, Cable Connector, for Data Cable Telephone Cable
You may also like
Compare with similar items
Product information
Description

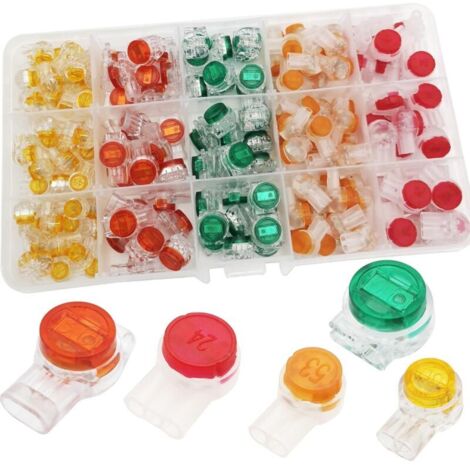

● Package Contents: 174 telephone wire connectors, including 50 UY connectors, 44 UY2 connectors, 24 UR connectors, 26 UR2 connectors, and 30 UG connectors. These connectors are ideal for connecting wires between small and medium power cables, offering a convenient and quick solution.
● Specification: The UY/UY2/UR/UR2/UG type loop connectors are uniquely moisture-proof and allow for direct connection. The gel-filled internal design ensures a hermetic environment for the conductor. Telephone wire connectors can only be connected to cables of the same polarity.
●Easy to install: When using a terminal connector, there is no need to strip the insulation. Simply insert the wires into the ports and secure them with a vise, dedicated wire pliers, etc. This provides insulation, safety, ease of use, good performance, and a fast connection rate of 100%.
●Suitable wire diameter: The applicable wire diameter for UY is 0.4 to 0.7 mm²/AWG 21-26, with a maximum outer insulation diameter of 1.52 mm. The applicable wire diameter for UY2/UR2 is 0.4-0.9 mm²/AWG 19-26, with a maximum outer insulation diameter of 2.08 mm. The applicable UR/UG wire diameter is 0.4 to 0.9 mm²/AWG 19-26, with a maximum outer insulation diameter of 1.67 mm.
●Application: Suitable for low current and low voltage conductors such as telephone lines, speaker wires, electrical wires, network cables, data signal cables, and data lines. Not suitable for high voltage and high current conductors.
Features
- BrandSEVENGIRL
- MaterialPlastic
- ManoMano ReferenceME100654781
- MMID906259387535
- Product codeAlexander-395
- EAN9781683280835
