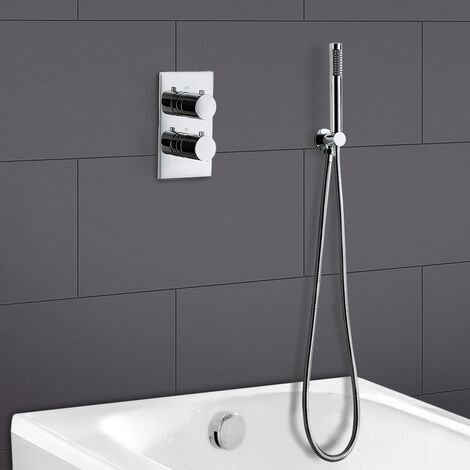

Teslie Round Concealed Thermostatic Shower Mixer Set - Handset & Bath Filler

Concealed Thermostatic Shower Mixer Information:

The Teslie concealed thermostatic Shower Mixer will compliment any modern bathroom suite, offers thermostatic showering via two easy-to-operate controls for temperature and flow.

This slim round concealed thermostatic mixer valve shower set is a perfect addition to any bathroom. The thermostatic mixer valve gives you complete temperature control with a built-in anti-scalding device, so you'll never have to worry about a drop in temperature again.

Thermostatic Mixer Valve Feature

• Top dial - controls water to 2 outlet diverter
• Bottom dial - temperature control
• High quality WRAS Approved design
• Chrome plated to BS EN 248
• Thermostatically controlled
• Manufactured from highly durable brass
• Operating range 20 - 50 deg C with 38 deg C safety button
• Built in non return valves to prevent back flow and filters to protect the thermostatic mechanism
• Chosen temperature maintained to within +/-1ºC
• Pre-set maximum temperature
• Automatic shut off in event of water cold supply failure
• UK standard size fitting, Inlet 3/4", Outlet 3/4"
• Minimum 0.5 bar water pressure
• Maximum Pressure:7.0

Bath filler and waste Specifications

• Push button bath tub waste with connecting overflow
• Combined bath filler and waste
• The overflow doubles as a bath filler tap and is connected to the waste by strong and sturdy plastic piping
• Easy to use - just press the waste and the waste pops up and allows the water to drain
• Modern design chrome plated finish
• Durable and solid brass construction
• Square Overflow Bath Filler
• Sprung Click Clack Waste
• Please Note: Only the bath filler overflow is supplied, an on/off mixer control to operate the filler is required

Technical Information

Suitable for the following water systems:

• Combination boiler systems
• Gravity-fed systems (only with a pump)
• MegaFlo systems
• Pumped hot water systems
• Un-vented hot water systems
• Standard pressurised hot water cylinder type systems

Package Contents

• 1 x Thermostatic Concealed Valve
• 1 x Bath Filler with waste
• 1 x Handset
