The high-power, two-wire, type 80 intelligent infrared human body sensor switch can replace the ordinary 110-240 switch

General Description

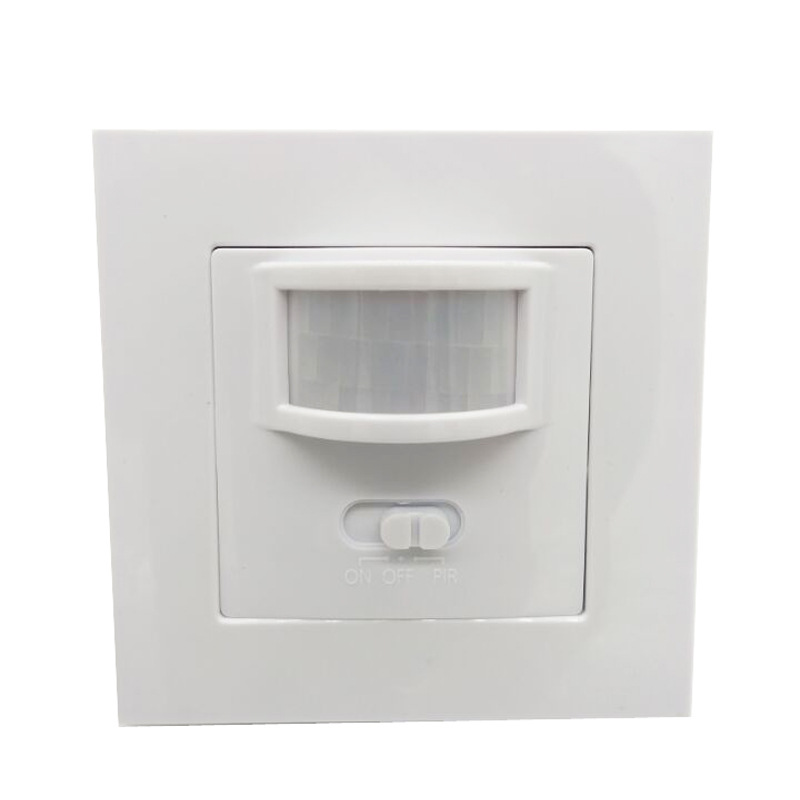

The Type 80 two-wire intelligent infrared human body sensor switch is designed to replace a standard switch. It operates with an input voltage of 110V to 240V AC and is ideal for use in various environments. This device allows for efficient lighting control thanks to its motion detection capability.

Technical Specifications

• Input Voltage: 110V-240V AC
• Rated Load: 500W for resistive loads (incandescent lamps); 150W for inductive loads (energy-saving lamps, LEDs)
• Detection distance: 10 meters
• Detection angle: 140 degrees
• Delay: adjustable from 5 seconds to 10 minutes
• Sensitivity: adjustable (day and night)

Installation

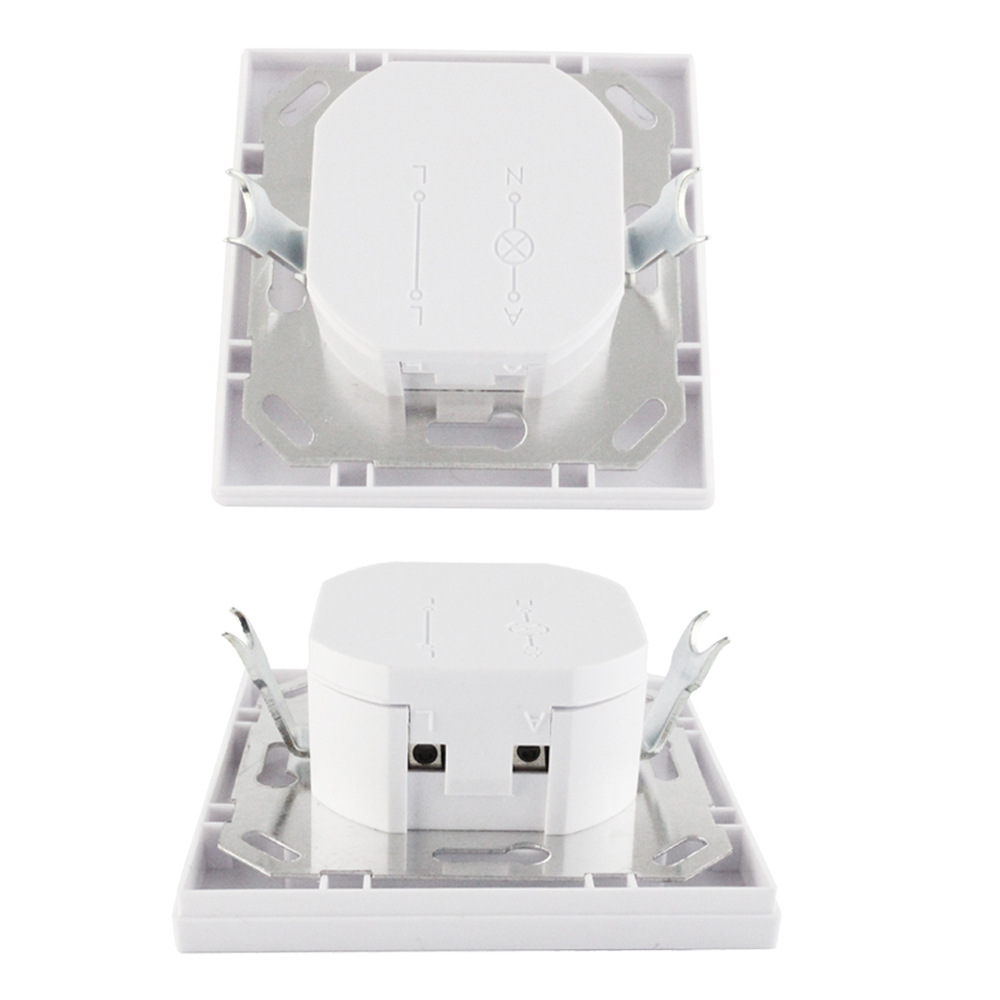

For installation, the live wire from the 220V power supply must be connected to the L connector of the induction switch. The A connector of the switch is the live wire input. A screwdriver is required to open the panel and access the settings.

Operation

The switch is equipped with two adjustment knobs: the TIME knob to adjust the delay time and the LUX knob to adjust the sensitivity. In sun position, it detects both day and night, while in moon position, it only detects night.
