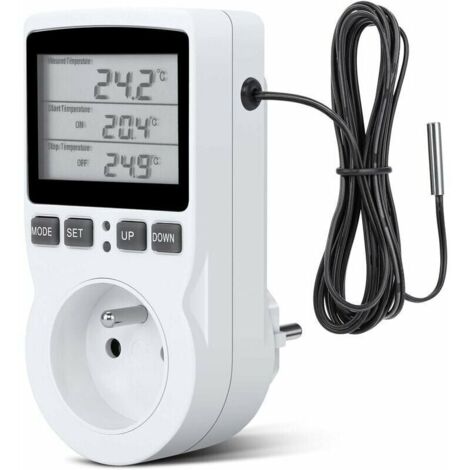

Thermostat Plug, Digital Timer Plug, Programmable Digital Plug with Probe, Programmable Digital Timer, Thermostat Plug for Greenhouse and Aquarium Heating

Intelligent temperature controller: Temperature range: -40°C to 120°C, temperature control accuracy: ±1%. The temperature controller can automatically switch between heating and cooling modes and control heating/cooling during operation by setting the equipment's start and stop temperature.

Various functions: The LCD screen can display the temperature control mode and 4 decrease modes (F01-F04). It also features temperature correction, screen lock protection, and a memory function (all current parameters are saved after power-off).

Intelligent Time Control: This plug-in thermostat can detect temperature, set the activation and deactivation temperatures, and control cycle time, activation-synchronization, deactivation-synchronization, and synchronization-switching functions. Time range: 0-99 hours and 59 minutes, time accuracy: up to 10 minutes. Maximum load: 16A(2), 3680W.

1.8m Temperature Probe: The plug-in thermostat comes with a 1.8m cable temperature probe for connection to the measurement point, with a temperature detection range of -40°C to +120°C.

Multiple Uses: The digital temperature controller plug can intelligently control temperature and time. It is widely used in household wall heaters and other greenhouse applications, aquariums, carbon crystal heaters, thermostat switches, mobile air conditioners, and intelligent aquaculture control.

Specification:

1. Rated Voltage: 230VAC 50HZ

2. Rated Load: MAX 16A 3680W

3. Temperature Range: -40~120℃

4. Temperature Control Error: ±1%

5. Temperature Display Resolution: 0.1℃

6. Timer Error: MAX 10 minutes

F01: Cycle Dimming Mode Press the "MODE" key to switch to F01. Press the "SET" button to set the ON (start hour/minute) and OFF (stop hour/minute) values. The ON value is the system's operating time, and the OFF value is the system's stop time. This mode is the cycle time, which can control the system to operate intermittently. F02: Synchronization Mode Activated. Press the "MODE" key to switch to F02. Press the "SET" button and set the hours/minutes. In this mode, the system is controlled to operate at the specified time. For example, if CDON is set to 30 minutes, the countdown starts, and the system starts automatically after 30 minutes.

F03: Timer Mode

Press the "MODE" key to switch to F03. Press the "SET" button and set the hours/minutes. In this mode, the system is controlled to stop at the specified time. For example, if you set CDOFF to 30 minutes, the countdown will start and the system will automatically stop after 30 minutes.

F04: Timer On/Off Mode

Press the "MODE" key to switch to F04. Press the "SET" button and set the CDON (hour/minute) and CDOFF (hour/minute) values. In this mode, the system is controlled to start and stop at the set time. For example, if you set CDON to 30 minutes and CDOFF to 40 minutes, the system will start running after 30 minutes, and once it starts running, it will stop running after 40 minutes.

Delivery Quantity: 1 piece
