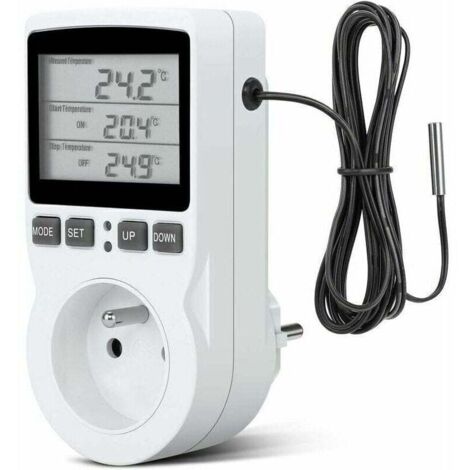

Thermostat Plug, Digital Timer Plug, Programmable Digital Plug with Probe, Programmable Digital Timer, Thermostat Plug for Greenhouse and Aquarium Heating

Intelligent temperature regulator: temperature range: 40-120, temperature control precision: ± 1%. The temperature control function can automatically switch to the heating and cooling modes and you can control the heating / cooling while working on the correct temperature control for draining and cooling.

Different functions: the LCD monitor can display the modes temperature control and 4 minute settings F01-F04. And with the temperature correction function, the lécran verrouillage protection, the stockage function (all the actual parameters are registered after the current setting).

Intelligent temp control: this thermostat valve can detect the temperature, regulate the activation and deactivation temperatures and the cycle temperature control functions, activation synchronization, darrêt synchronization and synchronization switching. Setting times: setting: 0-99 hours and 59 minutes, setting precision: just 10 minutes. Maximum charge: 16A (2), 3680W.

Temperature probe 1.8 m: The thermostat socket is doubled with a temperature probe with a 1.8 m cable for connection to the measurement point, with a temperature detection plate. 40? ~ 120 .

Multiple uses: the numerical temperature controller allows you to intelligently control the temperature and temperatures. This is largely used in the wall heater of the ménages and in other areas of greenhouses, aquariums, carbon glass radiators, thermostat switches, mobile air conditioners and the intelligent aquaculture control.

Specification:

1. rated voltage: 230VAC 50HZ

2. Rated charge: MAX 16A 3680W

3. Temperature range: 40 ~ 120 ℃

4. Temperature control error: ± 1%

5. Temperature display resolution: 0.1 ℃

6. Chronometer error: MAX 10 minutes

F01: Cycle count mode

Tap on the ""MODE"" touch to switch to F01. Click on the ""SET"" button to adjust the value ON (hour / minute of starting) and the value OFF (hour / minute of stopping). The ON value is the system operation time and the OFF value is the system shutdown time. The mode is the cycle times, here you can check the system to function intermittently.

F02: Synchronization mode active

Tap on the ""MODE"" touch to switch to F02. Click on the ""SET"" button and set the hours / minutes. In this mode, the system is controlled to function at the specific time. For example, if CD ON is set for 30 minutes, the clock will turn on and the system will turn on automatically after 30 minutes.

F03: Temporization mode

Turn on the ""MODE"" touch to switch to F03. Click on the ""SET"" button and set the hours / minutes. In this mode, the system is checked to stop at the specific time. For example, if you turn the CD OFF after 30 minutes, the recycle count will begin and the system will stop automatically after 30 minutes.

F04: Mode marche / stop minuterie

Tap on the ""MODE"" touch to switch to F04. Click on the ""SET"" button and adjust the CD value ON (hour / minute) and the CD value OFF (hour / minute). In this mode, the system is controlled to stop and stop at the defined hour. For example, if you set CD ON for 30 minutes and CD OFF for 40 minutes, the system will start working after 30 minutes, and then the system will start working, it will stop working after 40 minutes.

Delivery quantity: 1 piece
