Product information

Description

General description

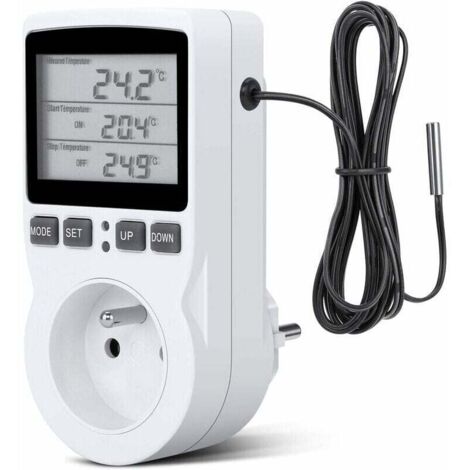

The Thermostat Socket is a versatile digital programmable socket designed for precise temperature control in various applications such as greenhouses and aquariums. It features an LCD screen that displays the temperature control mode and offers multiple timing modes (F01-F04) for enhanced functionality. The device can automatically switch between heating and cooling modes based on user-defined start and stop temperatures.

Technical specifications

Rated voltage: 230VAC 50HZ

Rated load: MAX 16A, 3680W

Temperature control range: -40°C to 120°C

Temperature control accuracy: ±1%

Temperature display resolution: 0.1°C

Time range: 0-99 hours and 59 minutes

Timing accuracy: up to 10 minutes

Temperature probe length: 1.8m

Temperature detection range: -40°C to +120°C

Installation

Connect the thermostat socket to a power source.

Attach the temperature probe to the desired measuring point.

Usage

F01: Cycle timing mode - Set ON and OFF values for intermittent operation.

F02: Enable Timing Mode - Control system operation at specified times.

F03: Timing Mode - Set a countdown for system shutdown.

F04: Timer On/Off Mode - Schedule start and stop times for the system.

Features

Brand
YMYNY
Power source
Corded
Smart
Yes
Colour
Black
Amperage
16 A

Thermostat Socket, Digital Timer Socket, Digital Programmable Socket with Probe, Programmable Digital Timer, Heating Thermostat Socket for Greenhouse, Aquarium MUMU
