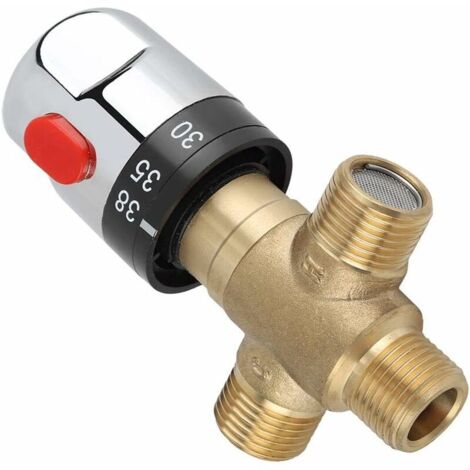

Thermostatic Water Pipe Valve, Brass Thermostatic Mixing Valve for Family Bathroom, Used to Control Shower Water Temperature Fonepro，

Easy to install.

Health and safety: It is advisable to install a thermostatic mixing valve in public places to avoid scalding users.

Ideal for use in bathroom, washroom, kitchen, laundry, etc.

Working pressure range: 0.03 MPa ~ 1 MPa (0.3 kg ~ 10 kg)

Ideal working pressure: 0.1 MPa ~ 0.5 MPa (1 kg ~ 5 kg).

Cold water temperature: 5~29℃

Hot water temperature: 30 ~ 99℃

Temperature adjustment range: 20~60℃, 35~55℃, 40~50℃, 30~60℃ (customizable temperature)

Temperature control accuracy: ±2℃

The thermostatic mixing valve can automatically adjust the ratio of cold and hot water inlet to ensure that the set water outlet temperature is constant. No power supply required. The thermostatic mixing valve is a normally closed cold water structure, and when there is no hot water inlet, the cold water is closed.

When the hot water supply temperature is lower than the set temperature of the valve, the cold water is cut off and only low-temperature hot water within a safe range is produced.

When the hot water temperature is higher than 40℃, if the cold water is suddenly interrupted, the hot water will automatically turn off to prevent scalding (after the cold water is interrupted for 3 seconds).

Install

A. The "H" of the thermostatic mixing valve is connected to the hot water inlet pipe and the "C" is connected to the cold water inlet pipe;

B. When installing, try to keep the cold and hot water inlet pressure equal. Within the allowable pressure difference range, the thermostatic valve can still work normally, but this is in the case of a large pressure difference for a long time.

During use, the life of the coil may be reduced; therefore, it is recommended to install a pressure reducing valve on the side with higher pressure (when the pressure difference is greater than 0.1 MPa) when used under conditions of large inlet water pressure difference.

C. If the cold and hot water pressures are inconsistent, a one-way check valve should be installed at the end with the smaller inlet pressure, or one-way check valves should be installed at both ends to prevent hot and cold water from escaping from each other.

Notes: When the valve pressure difference is greater than 0.02 MPa, the DN32-DN100 valve needs to install a check valve, DN15-DN25 has a built-in check valve and does not need to be installed.

Delivery quantity: 1 piece
