Product information

Description

General description

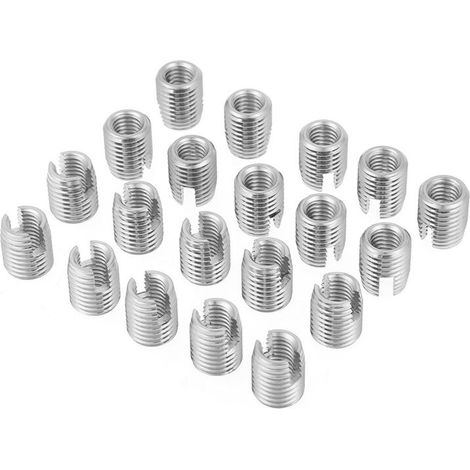

These M8 x 15mm threaded insert self-tapping spiral inserts are made from SUS303 stainless steel and come in a pack of 20. They are designed for easy installation without the need for pre-cutting, making them suitable for various applications.

Technical specifications

Material: SUS303 stainless steel

Internal thread: M8 (diameter) × 1.25 (pitch)

Length: 15mm

External thread size: M12 (diameter) × 1.5 (pitch)

Drill diameter: 10.6 ~ 10.8mm (plastic); 11 ~ 11.2mm (aluminum alloy); 11.2 ~ 11.4mm (cast iron)

Minimum drilling depth: 18mm

Weight: 104g (approx.)

Quantity: 20 inserts

Usage

These self-tapping thread inserts can be installed directly into damaged screw holes, allowing for normal use of the screw holes and preventing loss of parts. They are particularly effective in low-strength materials such as aluminum and magnesium, enhancing the strength and wear resistance of threaded connections.

Other information

Stable anti-vibration ability to prevent loosening

Widely used in the automobile industry, railway industry, shipbuilding, and household appliances

Improves reliability of threaded connections

Features

Brand
MEMKEY
Width
20 mm
Material
Stainless steel
Pcs per pack
20
Metric thread not standard thread
M8
Shape
Cylindrical
Weight
200 g
Nut type
Cylindrical
ManoMano Reference
ME75989368
MMID
512595692859
Product code
MM-FR1928
EAN
9302366306637

M8 x 15mm Threaded Insert Self Tapping Spiral Inserts SUS303 Stainless Steel (20pcs)
