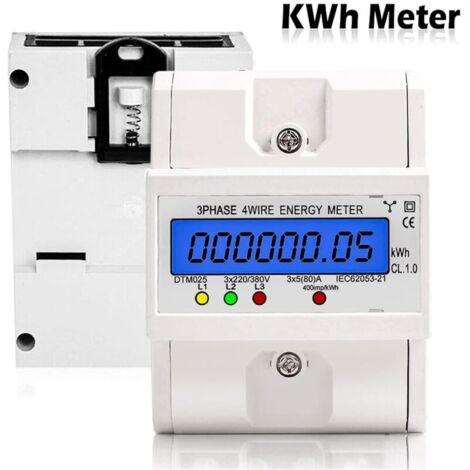

Three-Phase 4-Wire Electric Power Meter, 220/380V 5-80A Digital Electric Meter, DIN Rail Mounted Digital LCD Meters for Power Measurement Systems
Sold by re-green GmbH and 1 other seller
You may also like
Compare with similar items
Product information
Description
Specifications: Material: Flame-retardant ABS Display: LCD screen with backlight Current: 3x5(80)A Voltage: 3x220/380V Accuracy Class: 1.0 Standard: IEC62053-21 Frequency: 50/60Hz Pulse Constant: 400imp/kWh Power Consumption: ≤2W Starting Current: 0.004lb Operating Temperature: -20 to 55℃ Storage Temperature: -25 to 70℃ Item Size: 100x76x65mm/in Item Weight: 380g/13.40oz Package Size: 110x80x70mm/in Package Weight: 400g/14.11oz Package Contents: 1*Energy Meter 1*User Manual Features: The high-precision 4-wire, three-phase energy meter is designed for measuring single-phase active electricity at a nominal frequency of 50 or 60Hz. High-quality, flame-retardant ABS casing with good shock resistance, heat/cold resistance, insulation, and durability. With a 6+2 digit backlit LCD display, the meter accurately counts and clearly displays energy consumption. Adopts a standard DIN 35mm guide rail mounting; its compact size and light weight facilitate installation. The pure copper wiring terminal, with excellent conductivity and corrosion resistance, can ensure high current for long-lasting performance. Note: Size and color may vary slightly due to manual measurement and different lighting conditions. Thank you for your understanding.
Features
- BrandSNQ
- Amperage80 A
- Accuracy classClass 1.0
- Control functionYes
- Height3 cm
- Width2 cm
- MaterialAcrylonitrile butadiene styrene (ABS)
- Type of electrical installationDIN rail
- Number of modules1
- Number of phase(s)Three-phase
- Weight380 g
- Power2 W
- Voltage220 V
- Meter typeElectricity
- ManoMano ReferenceME92565305
- MMID456980156600
- Product codeFD-20608
- EAN6032223855000
