Tile Drill Bit Set, Diamond Drill Bit Set Gres with 5,6,8,10,12mm, Metal Drill Bit for 6mm Tile, Ceramic Drill Bit for Glass, Granite Marble Quartz Hard Materials

Sold by re-green GmbH and 1 other seller

Product information

Description

General description

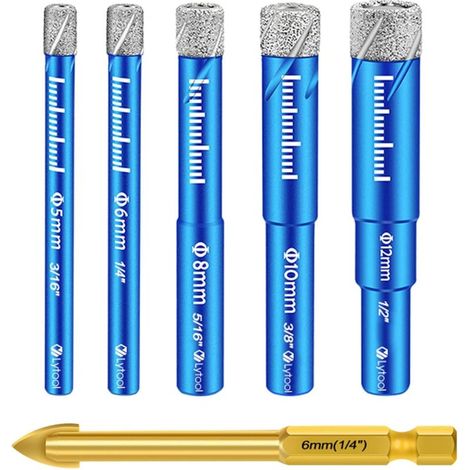

This Tile Drill Bit Set includes diamond drill bits in various diameters (5, 6, 8, 10, and 12mm) along with a 6mm carbide drill bit. Designed for precision drilling, these bits are ideal for creating clean holes in hard materials such as tile, porcelain, granite, ceramic, glass, mirror, stone, and brick. The unique dry drilling design features built-in wax cores that absorb and dissipate heat, eliminating the need for water and reducing pollution.

Technical specifications

Diameters: 5mm, 6mm, 8mm, 10mm, 12mm, and 6mm carbide

Drill depth: ≤35mm

Length: 65mm

High temperature resistant diamond grit for efficient drilling

Compatibility and accessories

Compatible with most machines, including hand drills, grinders, angle drills, and bench drills

Round shank design

Installation

Install the hole punch bit on the hand drill

Maintain a high speed and tilt the drill at 45° during the drilling process

After creating the positioning groove, hold the drill upright and drill while shaking it slowly in one direction

Usage

Ideal for drilling clean holes in hard materials

Ensure a slight rotational movement while drilling for optimal results

For cordless screwdrivers, maintain a speed above 1600 rpm

For hand drills, ensure a speed between 2,000-3,000 rpm

Other information

Not suitable for wood, metal, plastic, cement, or tempered glass

Filled with cooling wax, suitable for dry drilling

No cooling needed during drilling, but it can extend the service life of the bits

Features

Brand
AOUGO
Diameter
6 mm
Weight
200 g
Material
Diamond
Suitable for
Mineral / stone
