Product information

Description

General description

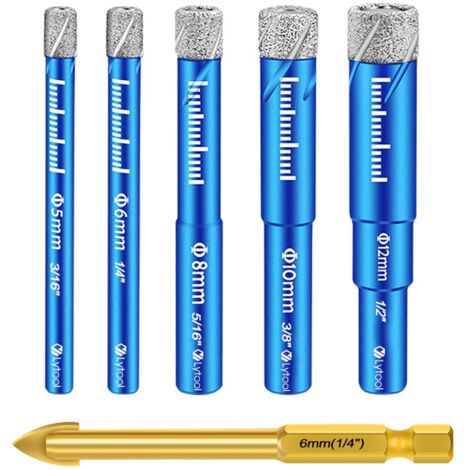

Tile Drill Bit Set includes diamond drill bits in sizes 5, 6, 8, 10, and 12 mm, along with a 6 mm carbide drill bit. These bits are designed for drilling clean holes in hard materials such as tiles, porcelain, granite, ceramic, glass, mirror, stone, and brick. The unique dry drilling design features built-in wax cores that absorb and dissipate heat, eliminating the need for water and reducing pollution.

Technical specifications

Sizes: 5 mm, 6 mm, 8 mm, 10 mm, 12 mm diamond drill bits and 6 mm carbide drill bit

Drilling depth: ≤35 mm

Length: 65 mm

High-quality diamond grit for efficient drilling

Cooling wax filled for dry drilling

Compatibility and accessories

Compatible with most machines including hand drills, angle grinders, and bench drills

Round shank design

Installation

Install the punch bit on the hand drill for use

Maintain high speed and tilt the drill at 45° during the process

After creating the positioning groove, drill upright while slowly shaking in one direction

Usage

Ideal for drilling clean holes in hard materials

Use a slight rotating motion while drilling for optimal results

For cordless screwdrivers, ensure speed is above 1600 rpm

For hand drills, ensure speed is between 2000-3000 rpm

Other information

Not suitable for wood, metal, plastic, cement, or tempered glass

Images and videos may be available for demonstration

Features

Brand
TINOR
Diameter
6 mm
Shank type
Cylindrical
Useful lengh
65 mm
Compatible machine
Drill

Drill buying guide

From hammer drills to drill drivers, your choice of drill will come down to the type of tasks you want to complete. For example, a cordless drill is better for driving screws while a corded drill is best suited to drilling. Read on for our tips on picking the right torque, RPM, impact rate, battery and chuck type.

Tile Drill Bit Set, Diamond Drill Bits for Ceramics with 5,6,8,10,12 mm, Metal Drill Bit for 6mm Tile, Ceramic Drill Bits for Glass, Granite Marble Quartz Hard Materials
