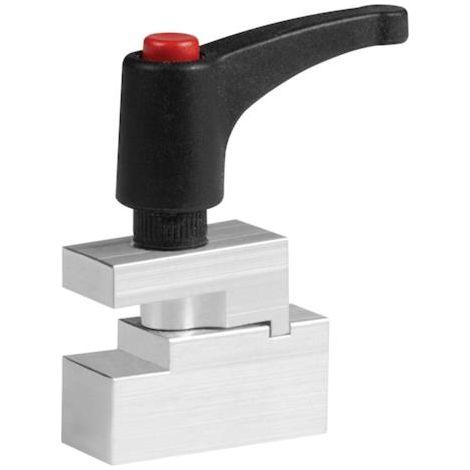

Name: TREND TRUE CUT OUT OF SQUARE DEVICE
Brand: TREND
SKU: KWJ/OSD
Availability: OutOfStock

Product information

Description

General description

The Trend KWJ True Cut Out Of Square Device (KWJ/OSD) is an essential worktop jig accessory designed for creating fast and accurate angled worktop joints, accommodating out of square walls. This innovative tool allows for precise adjustments and is ideal for both acute and obtuse wall angles, making it a versatile addition to any kitchen fitter's toolkit.

Technical specifications

Out of square capacity: up to 25 degrees

Maximum jig thickness: 12 mm

Height: 73 mm

Width: 73 mm

Depth: 17 mm

Compatibility and accessories

Compatible with Trend KWJ 750P Pro, KWJ 900P Pro, KWJ 700, KWJ 700S, and KWJ 900 worktop jigs

Works with jigs up to 12 mm thick

Installation

Fast alignment to the worktop edge ensures correct backset position

Simple four-step procedure: Measure, Mark, Clamp, Cut

Usage

Front edge pivot point alignment ensures the backset is correctly set to match the female cut

Works with any worktop edge profile from square edge to full bullnose

Bevelled corner design allows deeper profiles to be set up and cut on standard backset jigs

Other information

Made from solid aluminium for maximum lifespan and accuracy

Two-part construction with keyed interlock for easy swivel and secure clamping

High-quality spring-loaded handle for fast adjustment and secure lock

Features

Brand
TREND
Material
Aluminium
Weight
1000 g
Mitre saw accessory type
Stop
Table saw accessory type
Stop
ManoMano Reference
ME54453942
MMID
240516040037
Product code
KWJ/OSD
EAN
5027654071953

TREND TRUE CUT OUT OF SQUARE DEVICE
