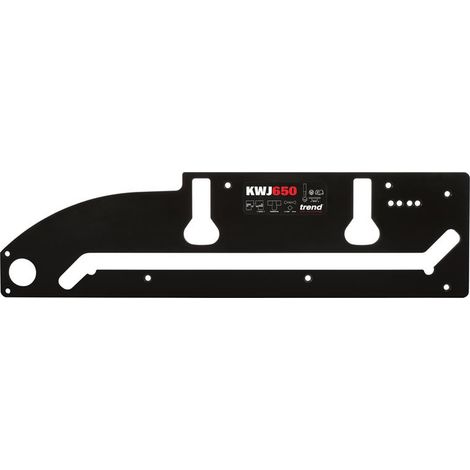

Name: Trend Kitchen Worktop Jig with Peninsular Cut 650mm TREKWJ650
SKU: KWJ650
Availability: OutOfStock

Product information

Description

General description

Trend Kitchen Worktop Jig with Peninsular Cut is designed for worktops up to 650mm wide. This jig is made from durable, CNC machined Compact Grade High-Pressure Laminate, ensuring longevity and precision in your DIY projects.

Technical specifications

Material: Compact Grade High-Pressure Laminate

Thickness: 12mm

Maximum worktop width: 650mm

Maximum worktop thickness: 40mm

Fixed lengths for worktops: 600mm, 616mm, 635mm, and 650mm

Radius for peninsular joint: 400mm

Diameter for kitchen door hole: 35mm

Pin diameter: Ø10mm

Usage

Cuts both parts of the joint in approximately 15 minutes, including setup time.

Suitable for cutting left and right-hand corners.

Can create 2 open-ended bolt recesses (dog bone style) for 150mm bolts.

Includes plastic pins with tapered shoulders for a tight fit, providing 3-point pin contact for easy setup.

Other information

MPN: KWJ650

EAN: 5027654063422

Trend Kitchen Worktop Jig with Peninsular Cut 650mm TREKWJ650

Features

Colour
Black
Length
65 cm
Material
Plastic
Thickness
12 mm
Shape
Rectangular
Depth
1.2 cm
ManoMano Reference
ME13175379
MMID
340061327809
Product code
KWJ650
EAN
5027654063422
