Trend KWJ950/PRO 950mm Pro Kitchen Worktop Jig + 50mm 1/2"" Router Cutter Bit

Sold by BuyaParcel

You may also like

Bosch 2 609 200 139BOSCH
5 options

Bosch 2 609 200 139

42
Free delivery
Bahco PC-22-INS 22-Inch Insulation and Polystyrene Waved Tooth Saw for Precise CuttingBAHCO

Bahco PC-22-INS 22-Inch Insulation and Polystyrene Waved Tooth Saw for Precise Cutting

13
Free delivery
Festool 486030 Copying Ring KR-D17/OF 900FESTOOL
2 options

Festool 486030 Copying Ring KR-D17/OF 900

33
Festool 493487 Trim stop for DF500 & DF700 LA-DF500/700FESTOOL

Festool 493487 Trim stop for DF500 & DF700 LA-DF500/700

21

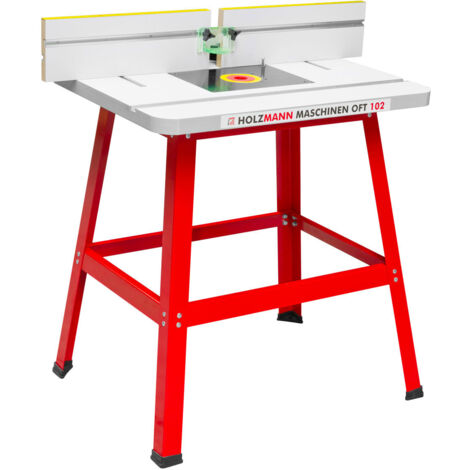

ROUTER TABLE BENCH WOOD HOLZMANN OFT102HOLZMANN

ROUTER TABLE BENCH WOOD HOLZMANN OFT102

18
£312.41
Free delivery
Plunge circular saw 210mm Scheppach pl75SCHEPPACH

Plunge circular saw 210mm Scheppach pl75

75
£266.40
Free delivery
Festool 486033 Copying Ring KR-D 30/OF 900FESTOOL
2 options

Festool 486033 Copying Ring KR-D 30/OF 900

33
Stanley Tools Fatmax PVC & Plastic Saw 300mm 11TPISTANLEY

Stanley Tools Fatmax PVC & Plastic Saw 300mm 11TPI

4
Free delivery
MAKITA LS002GZ01 40v Slide compound mitre saw 216mm bladeMAKITA

MAKITA LS002GZ01 40v Slide compound mitre saw 216mm blade

2
Free delivery
Bosch Function accessories routing Template guide 2609200141BOSCH
5 options

Bosch Function accessories routing Template guide 2609200141

42
Free delivery
Bosch Function accessories routing Template guide 2608000471BOSCH
5 options

Bosch Function accessories routing Template guide 2608000471

42
Free delivery
Bosch Function accessories routing Template guide 2609200142BOSCH
5 options

Bosch Function accessories routing Template guide 2609200142

42
Free delivery
Bosch Function accessories routing Template guide 2609200138BOSCH
5 options

Bosch Function accessories routing Template guide 2609200138

42
Free delivery
DeWalt DCS7485T2 54V XR Flexvolt Cordless Table Saw (2 x 6.0Ah Li-Ion Batteries & Charger)DEWALT

DeWalt DCS7485T2 54V XR Flexvolt Cordless Table Saw (2 x 6.0Ah Li-Ion Batteries & Charger)

Free delivery

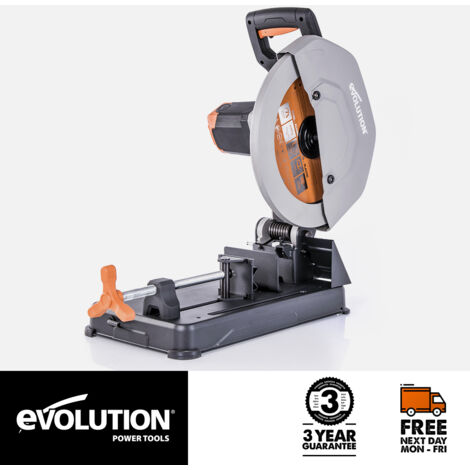

Evolution Power Tools R355CPS Multi-Material Chop Saw 2200W 240V EVLR355CPSEVOLUTION POWER TOOLS

Evolution Power Tools R355CPS Multi-Material Chop Saw 2200W 240V EVLR355CPS

Free delivery
Bahco 255-17/34 ProfCut Concrete Block Saw with 812mm (32-inch) Blade and 0.6 TPI for Professional CuttingBAHCO
11 options

Bahco 255-17/34 ProfCut Concrete Block Saw with 812mm (32-inch) Blade and 0.6 TPI for Professional Cutting

18
Free delivery
Heavy-Duty Telescopic Rescue Ladder 4400mm Length by MUNK Rettungstechnik, Compliant with EN 1147:2010 EU StandardsSTANLEY FATMAX

Heavy-Duty Telescopic Rescue Ladder 4400mm Length by MUNK Rettungstechnik, Compliant with EN 1147:2010 EU Standards

Free delivery
Stanley Fatmax Compass Tenon Saw 300mm 12 Inch 2-17-205 STA517205 STA217205STANLEY

Stanley Fatmax Compass Tenon Saw 300mm 12 Inch 2-17-205 STA517205 STA217205

7
Free delivery
Einhell 4300295 TC-MS 2112 1600w 210mm Compound Mitre SawEINHELL

Einhell 4300295 TC-MS 2112 1600w 210mm Compound Mitre Saw

32
Free delivery
DREMEL 2.615.033.5JA Plunge router attachmentBOSCH

DREMEL 2.615.033.5JA Plunge router attachment

53

Compare with similar items

Product information

Description

General description

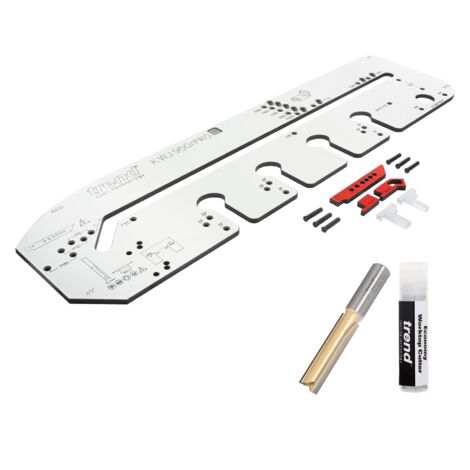

The Trend KWJ950/PRO is a 950mm professional multi-material worktop jig designed for routing mitre joints in laminated, timber, and compact laminate surfaces. It features innovative front edge alignment technology, allowing for precise positioning and accommodating various worktop widths. This jig is ideal for both square-edged and modern bullnose worktops, providing a cleaner aesthetic and improved performance.

Technical specifications

  • Length: 1260 mm
  • Width: 340 mm
  • Thickness: 12 mm
  • Weight: 7.4 kg
  • Insets: 3 mm, 10 mm, 35 mm
  • Backsets: 600 mm, 610 mm, 616 mm, 620 mm, 635 mm, 700 mm, 900 mm, 950 mm
  • Bolt Recess Centres: 175 mm
  • Corner Radius: 40 mm, 100 mm
  • Peninsular Radius: 400 mm

    • Compatibility and accessories

  • Includes 1 x Trend BR01 BR01X1/2TC 50mm 1/2" Router Kitchen Fitters Worktop Cutter
  • Requires: Guide Bush 30 mm, Router Cutter 12.7 mm diameter
  • Compatible with standard worktop bolt sizes, including Zipbolt and Unika ‘Slimline’ connection bolts

    • Installation

  • Preset connector bolt recesses for easy installation
  • Indexed backsets for standard 90º installations
  • Male cut-line positioning devices for accurate setup

    • Usage

  • Ideal for general-purpose trimming and mortising
  • Used with Trend Worktop Jigs for cutting worktop joints, bolt recesses, and sink/hob apertures in laminated chipboard and solid timber

    • Other information

  • Tungsten carbide tipped cutter for long life
  • Ground tip face polished to 400-grit for accurate cutting
  • Ground bottom clearance for optimum waste removal
  • Safety K-Mark indicates correct cutter shank position
  • EN shank markings for easily readable cutter and safety information
  • Plastic storage container included for maximum protection

    • Features

    • Brand
      TREND
    • Length
      126 cm
    • Width
      34 cm
    • Weight
      7400 g
    • Material
      Tungsten carbide
